Specifications
| Model | Material Width (mm) | Material Thickness (mm) | Material Line Height (mm) | Feeding Angle | Relaxation Angle | Installation Position | Feeding Direction |
| GCF-150 | 150 | 0.35-1.0 | 60-120 | 180° | Adjustable | Turn Left | Left Right |
| GCF-200 | 250 | 0.35-1.0 | 60-120 | 180° | Adjustable | Turn Left | Left Right |
| GCF-300 | 400 | 0.35-1.0 | 60-120 | 180° | Adjustable | Turn Left | Left Right |

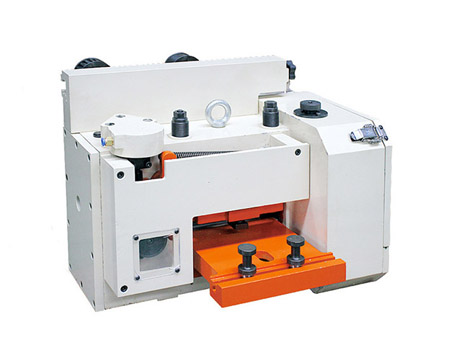

Product Description
It is suitable for feeding devices with different thickness, different feeding distance and wide range of application due to wide variation of material width.
There is no need to adjust the feeding thickness, and the step distance can only be changed by the gear.
Standard specifications
Intermittent feeding mode driven by cam.
The lower roller is driven while the upper roller is operated by the manual switch of the air valve.
One of the lubrication methods is that the internal gear part of the divider is divided into oil feed groove type, while the other gear parts are oil immersed type.
The upper and lower rollers are provided with hard soldering treatment.
The release device is an eccentric cam, so the release angle can be adjusted freely within the range of 0 °~180 °.
