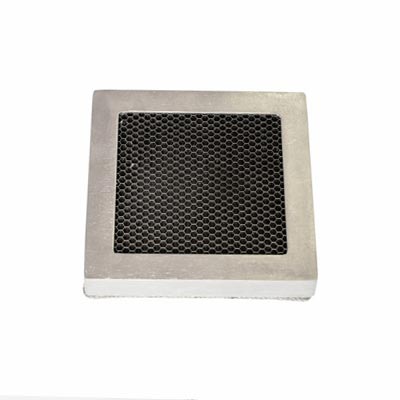

Aluminum waveguide window

It is made of aluminum outer frame and aluminum honeycomb core pressed by special process, and then processed by surface treatment (electroplating) to achieve shielding effect.
Its advantage is: light weight, more suitable for the use of portable computers and small carrying cases
Standard aperture: 3.2 mm
The foil thickness is 0.05mm
The thickness of honeycomb is 12.7mm
The overall thickness is 15.9mm
The external dimension can be made to order according to the request.
