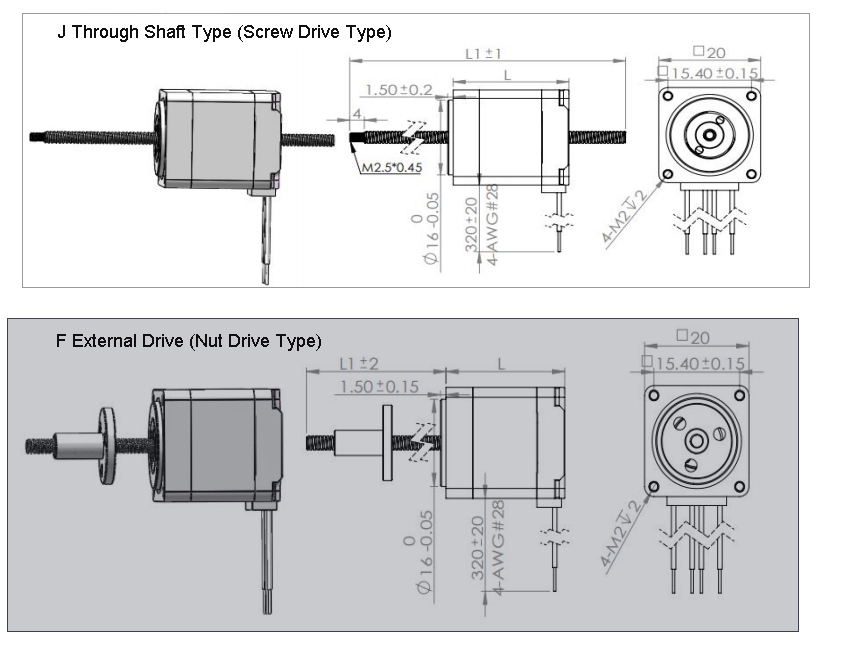

Attention: When installing the motor, be sure to use the flange of the motor front end to install the spigot for positioning, and strictly ensure the concentricity of the motor output shaft and the load.
Do not allow the surface temperature of the motor to exceed 85° during operation.
Motor Specification
Model | Rated Voltage(V) | Phase Current(A) | Phase Resistance(Ω) | Phase Inductance(mH) | Length(mm) |
| 20-2505 | 2.5 | 0.5 | 5.1±10% | 1.5±20% | 27.2 |
| 20-4405 | 4.4 | 0.5 | 8.8±10% | 2.7±20% | 38.1 |
| 20-4010 | 4.0 | 1.0 | 4.1±10% | 4.0±20% | 44.6 |
Optional Screw Lead And Basic Step
Screw Code | Screw Diameter(mm) | Screw Lead(mm) | Step Length(mm) |
| 0102 | 3.5052 | 0.6096 | 0.00305 |
| 0103 | 1.2192 | 0.0061 | |
| 0104 | 2 | 0.01 | |
| 0108 | 4 | 0.02 | |
| 0109 | 8 | 0.04 |

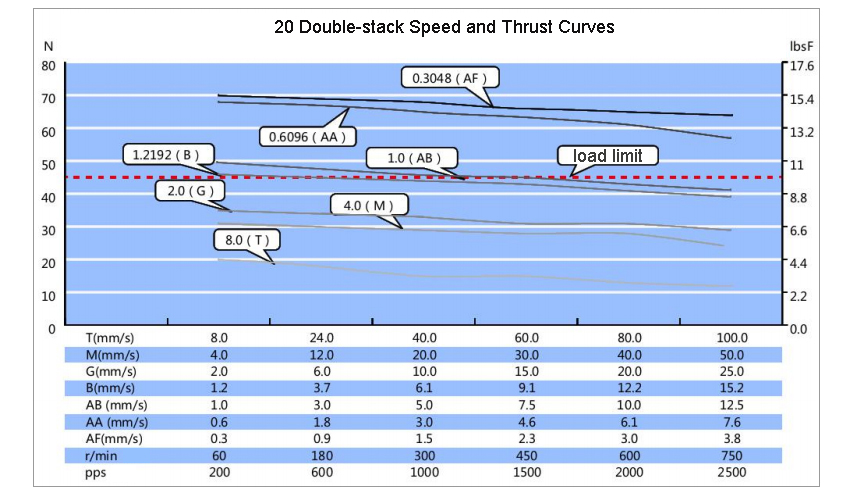

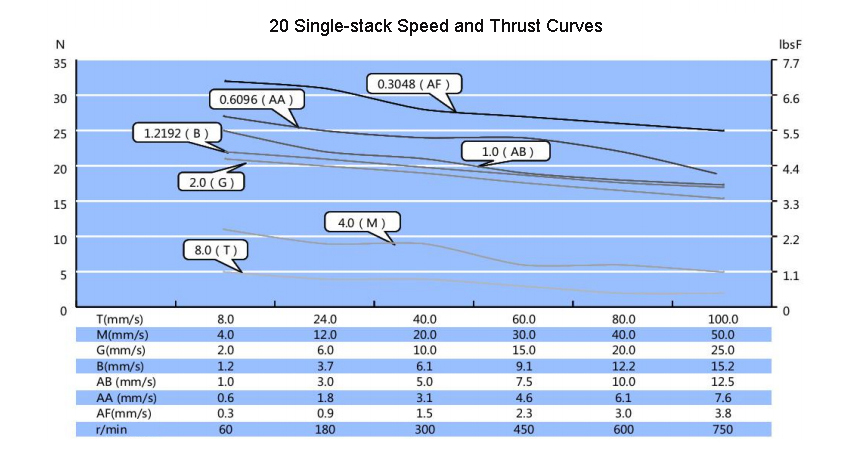

Speed Thrust Curve
