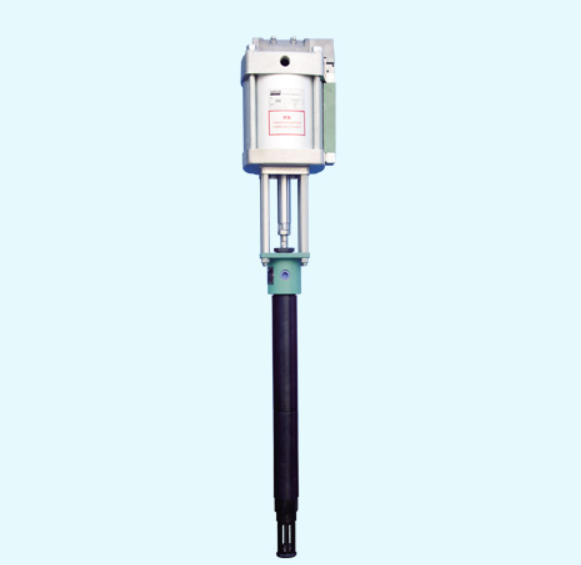

It is applicable to the transportation of high viscosity and ultra-high viscosity media. Such as grease, ink, silicone, etc. It can provide a variety of flow and compression ratio.
Specification
| Pump model | C100C70 | C150C140 | C200C250 |
| Effective cylinder diameter of cylinder (mm) | 100 | 150 | 200 |
| Effective stroke of cylinder (mm) | 155 | ||
| Effective pump diameter of pump pipe (mm) | 22 | ||
| Effective volume of pump pipe (L) | 0.06 | ||
| Output ratio | 70:1 | 140:1 | 250：1 |
| Maximum displacement (75 strokes/minute) | 4L | ||
| Oil pressure output when the air source is 7BAR | 490BAR | 9800BAR | 1750BAR |
| Size of oil outlet interface | G1/2 | ||
| Air source interface size | ZG1/4 | ZG3/4 | |
| Minimum access pipe diameter | Φ10mm | Φ15mm | Φ20mm |
Product features：
Modular unit design；
Building-block integration；
The air motor is durable, and the required oil quantity can be obtained only by operating the air sensor. Multiple output ratios and displacement are applicable to different needs；
It is suitable for conveying high-viscosity medium with large displacement and no fluidity；
Especially suitable for flammable and dry workplaces；
Special heat treatment and surface treatment technology extend the service life of pump pipe.
