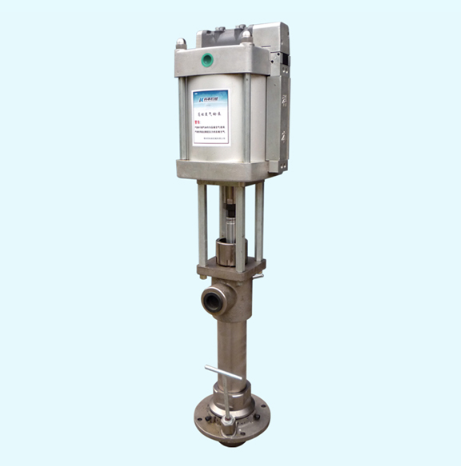

Transportation of high viscosity and ultra-high viscosity media. Such as ink, grease, adhesive, sealing materials, etc., can provide a variety of displacement and outlet pressure, and can be equipped with a 200-litre lifting frame for the transportation of 200-litre barrelled media.
Specification
| Pump model | QB150C12 | QB150C18 | QB150C28 | QB150C38 | QB200C22 | QB200C32 | QB200C50 | QB200C68 |
| Effective cylinder diameter (mm) | 150 | 200 | ||||||
| Effective stroke of cylinder (mm) | 155 | |||||||
| Effective pump diameter of pump pipe (mm) | 60 | 50 | 40 | 35 | 60 | 50 | 40 | 35 |
| Output ratio | 12:1 | 18:1 | 28:1 | 38:1 | 22:1 | 32:1 | 50:1 | 68:1 |
| Maximum displacement (75 strokes/minute) | 30L/min | 22L/min | 15L/min | 12L/min | 30L/min | 22L/min | 15L/min | 12L/min |
| Oil pressure output when the air source is 7BAR | 84BAR | 126BAR | 196BAR | 265BAR | 154BAR | 224BAR | 350BAR | 480BAR |
| Size of oil outlet interface | ZG1-1/2 | |||||||
| Air source interface size | ZG3/4 | |||||||
| Minimum access pipe diameter | 12mm | 20mm | ||||||
Product features：
Modular unit design
Air motor is durable
Multiple output ratios and displacement are suitable for different needs
It is applicable to the transportation of high-viscosity medium with large displacement and no migration
Building-block integration
Special heat treatment and surface treatment technology extend the service life of pump pipe
The required oil quantity can be obtained only by operating the air compressor
Especially suitable for flammable and dry workplaces
