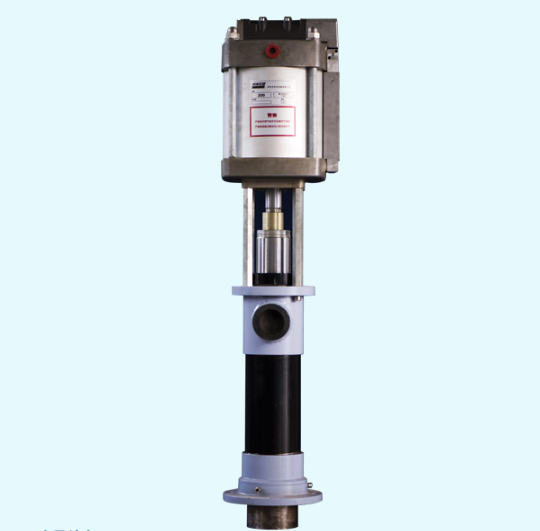

Suitable for medium and low viscosity medium transportation. Its main advantage is large flow, such as ink turnover.
Specification
| Pump model | ZB150C4 | ZB150C5.5 | ZB150C7 | ZB150C9 | ZB200C8 | ZB200C10 | ZB200C12 | ZB200C16 |
| Effective cylinder diameter (mm) | 150 | 200 | ||||||
| Effective stroke of cylinder (mm) | 155 | |||||||
| Effective pump diameter of pump pipe (mm) | 100 | 90 | 80 | 70 | 100 | 90 | 80 | 70 |
| Output ratio | 4:1 | 5.5:1 | 7:1 | 9:1 | 8:1 | 10:1 | 12:1 | 16:1 |
| Maximum displacement (75 strokes/minute) | 85L/min | 70L/min | 55L/min | 40L/min | 85L/min | 70L/min | 55L/min | 40L/min |
| Oil pressure output when the air source is 7BAR | 28BAR | 38BAR | 50BAR | 65BAR | 55BAR | 70BAR | 85BAR | 115BAR |
| Size of oil outlet interface | ZG 2' | |||||||
| Air source interface size | ZG3/4'' | |||||||
| Minimum access pipe diameter | 12mm | 20mm | ||||||
Product features：
Modular unit design
Air motor is durable
Multiple output ratios and displacement are suitable for different needs
It is suitable for conveying high-viscosity medium with large displacement and no fluidity
Building-block integration
Special heat treatment and surface treatment technology extend the service life of pump pipe
The required oil quantity can be obtained only by operating the air compressor
Especially suitable for flammable and dry workplaces
