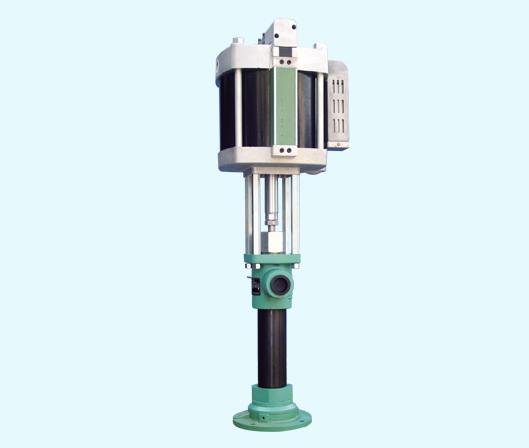

Suitable for medium and high viscosity medium transportation. Its main advantages are high hardness and wear resistance of pump pipe.
Specification
| Pump model | Y150C12 | Y150C18 | Y150C28 | Y200C22 | Y200C32 | Y200C50 | Y250C35 | Y250C50 | Y250C78 |
| Effective cylinder diameter (mm) | 150 | 200 | 250 | ||||||
| Effective stroke of cylinder (mm) | 135 | ||||||||
| Effective pump diameter of pump pipe (mm) | 60 | 50 | 40 | 60 | 50 | 40 | 60 | 50 | 40 |
| Effective volume of pump pipe (L) | 0.45 | 0.3 | 0.2 | 0.45 | 0.3 | 0.2 | 0.45 | 0.3 | 0.2 |
| Output ratio | 12:1 | 18:1 | 28:1 | 22:1 | 32:1 | 50:1 | 35:1 | 50:1 | 78:1 |
| Maximum displacement (75 strokes/minute) | 30L | 22L | 15L | 30L | 22L | 15L | 30L | 22L | 15L |
| Oil pressure output when the air source is 7BAR | 84BAR | 126BAR | 195BAR | 155BAR | 225BAR | 350BAR | 245BAR | 350BAR | 545BAR |
| Size of oil outlet interface | ZG1-1/2 | ||||||||
| Air source interface size | ZG3/4 | ||||||||
| Minimum access pipe diameter | Φ15mm | Φ20mm | Φ25mm | ||||||
Product features：
Modular unit design
Building-block integration
The air motor is durable, and the required oil quantity can be obtained only by operating the air valve. Multiple output ratios and displacement are applicable to different requirements
It is suitable for conveying high-viscosity medium with large displacement and no fluidity
Especially suitable for flammable and dry workplaces
The unique heat treatment and surface treatment technology extend the service life of the pump pipe.
The pump pipe is made of high-strength alloy steel, and the quenching hardness reaches HRC65°C.
