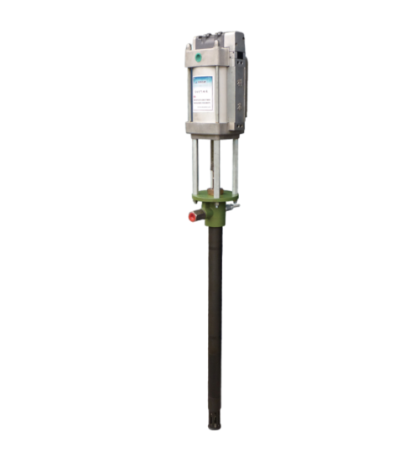

Transport of high viscosity and ultra-high viscosity media, such as grease, ink, silica gel, etc. It can provide a variety of flow and compression ratio.
Specification
| Pump model | QB150Y36 | QB150Y66 | QB150Y112 | QB200Y65 | QB200Y118 |
| Effective cylinder diameter (mm) | 150 | 200 | |||
| Effective stroke of cylinder (mm) | 155 | ||||
| Effective pump diameter of pump pipe (mm) | 35 | 26 | 20 | 35 | 26 |
| Output ratio | 36:1 | 66:1 | 112:1 | 65:1 | 118:1 |
| Maximum displacement (75 strokes/minute) | 8.2L/min | 4.5L/min | 2.6L/min | 8.2L/min | 4.5L/min |
| Oil pressure output when the air source is 7BAR | 308BAR | 560BAR | 784BAR | 455BAR | 826BAR |
| Size of oil outlet interface | ZG1-1/2 | ||||
| Air source interface size | ZG3/4 | ||||
| Minimum access pipe diameter | 12mm | 20mm | |||

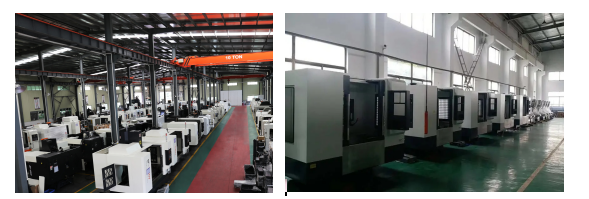

Production
