Specification

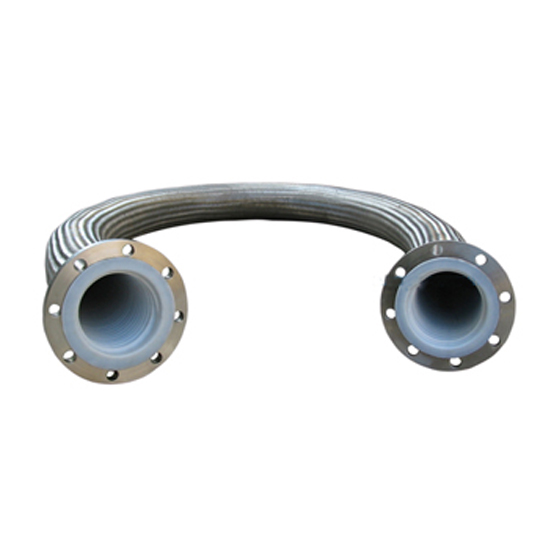

Lined with PTFE hose through the processing method, PTFE metal hose changed the characteristics of the previous pipe can not be wound, can withstand various concentrations of acid, alkali, salt. It can also be used to connect the graphite and ceramic glass pipes with lower machinery, can be used as the feed and discharge pipes of tank trucks, storage tanks, containers or reactors, and polyethylene tetrafluoroethylene metal hoses can be misaligned pipes or used to balance the displacement and dimensional changes of pipes caused by climate or other reasons or to eliminate high-frequency mechanical vibration. It can also be used as a tubular reactor or heat exchanger.

316L stainless steel annular corrugated inner pipe.

Sizes range from 1/4 to 2 in., working pressure is vacuum to 1600 psig(110 bar).

304 stainless steel single braided layer increases hose bearing capacity (M).
