The company is specialized in producing single-station and double-station full-automatic horizontal caseless molding machine, full-automatic assembly line and full-automatic annular casting line. Please contact us if necessary.
Specification

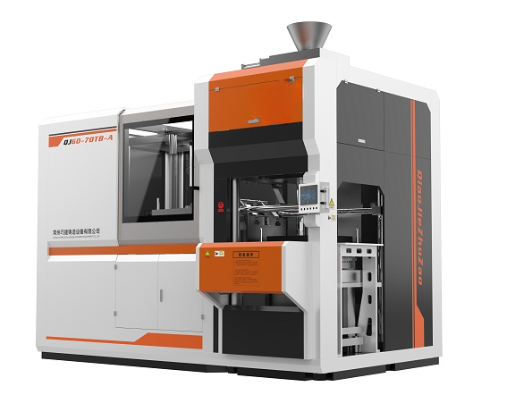

| Model | QJ70-70TB-A |
| Equipment dimension (L) x width (B) x height (H) (mm) | 4466*3106*3878 |
| Net weight of molding machine | 18.08 T |
| Sand mold size (mm) | 700 * 700 * 600 |
| L x W x H | Upper model height 150-300 Lower type height 150-300 |
| Modeling speed | 36 seconds S (Type 100 Mold/hour H) |
| Sand consumption | 38T |
| Weight of sand mold | 386kg |
| Control mode | PLC fully automatic control |
| Air supply pressure | 0.6 MPa |
| Air supply | 4.2 m3/min |
| Air storage tank equipped | 1 cubic M3 * 4 |
| Use power | 380V (50-60Hz) |
| Number of pouring risers | 9 |
| Diameter of pouring riser (mm) | 25-35mm |
| Drive mode | Servo hydraulic system+pneumatic |
| Modeling method | Airflow sanding, multi-stage rapid extrusion |
| Mold type | Aluminum mold, steel mold, resin mold |
