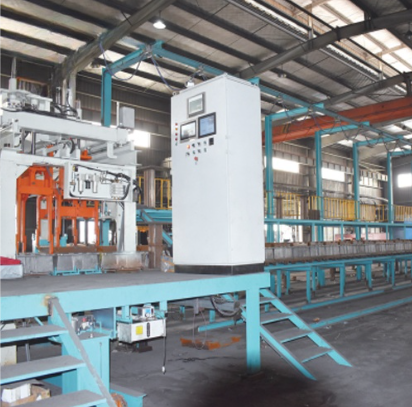

Fully automatic transfer equipment for sand mold made by automatic transfer molding mechanism.
Specification
| Model | QJK55-60 | QJK60-70 | QJK70-70 | QJK90-120 |
| Open line size (mm) L*B*H | 40000x5800x1500 | 43200x5900x1500 | 45000x5900x1500 | 68000x7600x1800 |
| Trolley size (mm) (L) X (B) | 650x700 | 685x800 | 800x800 | 1050x1350 |
| Total number of boxes | 106-120 | 106-120 | 106-120 | 106-120 |
| Total number of trolleys | 108-128 | 108-128 | 108-128 | 108-128 |
| Total power | 9.8 kW | 9.8 kW | 9.8 kW | 22 kW |
| Air consumption | 1.8 m3/min | 1.8 m3/min | 1.8 m3/min | 3 m3/min |
| Drive mode | Variable frequency drive + pneumatic drive Variable frequency drive + hydraulic drive Variable frequency drive + servo electric cylinder drive Full pneumatic drive | Variable frequency drive + pneumatic drive Variable frequency drive + hydraulic drive Variable frequency drive + servo electric cylinder drive Full pneumatic drive | Variable frequency drive + pneumatic drive Variable frequency drive + hydraulic drive Variable frequency drive + servo electric cylinder drive Full pneumatic drive | Variable frequency drive + pneumatic drive Variable frequency drive + hydraulic drive Variable frequency drive + servo electric cylinder Full pneumatic drive |
| Control mode | PLC full-automatic program control | PLC full-automatic program control | PLC full-automatic program control | PLC full-automatic program control |
| Supply pressure | 0.6 MPa | 0.6 MPa | 0.6 MPa | 0.6 MPa |
Productio
Qualificatio
