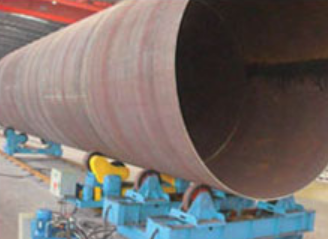

Application for joining of long pipe such as wind tower.
High efficiency for 1+1 can assembly process.
One set consist of one power and one idler roller bed, four independently adjusted
rollers to align the tWo cans with each other.
It is used together with standard conventional powered and idler rotator.
Specification
| Type | Max. load (kg) | Range of suitable work piece(mm) | Dia.and width of ubber roller(mm) | Roller linear speed (m/h) | Motor power (kw) | Inner distance of rail(mm) | Way of setting |
| HGK-40 | 40000 | φ2000- φ4800 | φ400*210 | 6-60 | 2*1.5 | 1700 | Variable frequency control |
| HGK-60 | 60000 | φ2500- φ5000 | 2*φ520*178 | 6-60 | 2*2.2 | 2000 |
