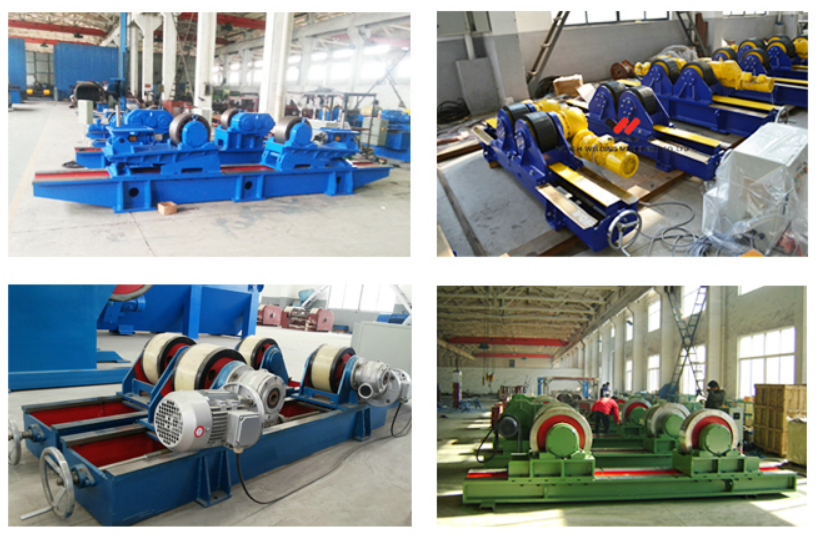

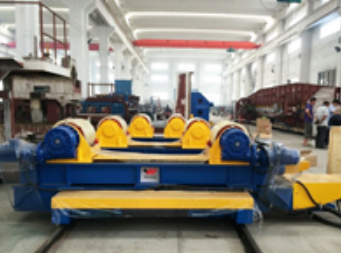

Conventional roller beds are a basic solution for the handling of a variety of
workpieces, such as welding ,polishing ,glue-lining,and assenmling of the cylinder
body.
Conventional rotator standard size is from 2T to 500T, beyond this range please
contact us for further communication.
The adjustment of roller distance according to diameter is carried out by manual.
Rotation is even and certain, the whole welding process can be effectively
automated.
Specification
| Type | Max loading (kg) | Range of suitable work piece(mm | Dja, and width of the wheel(mm) | roller linear velocity(m/h) | Power of motor(kw) | Adjustable mode for space | Way of setting | |
| Rubber rollers | Metal rollers | |||||||
| HGK-2 | 2000 | Φ200-1200 | Φ200×100 | 2×Φ190×16 | 6-60 | 2×0.18 | Manual screw adjustment or bolt shift | Variable frequency control |
| HGK-5 | 5000 | Φ250-2300 | Φ750×100 | 2×Φ240×20 | 6-60 | 2×0.37 | ||
| HGK-10 | 10000 | Φ300-2800 | Death flat300×120 | 2×Φ290×25 | 6-60 | 2×0.55 | ||
| HGK-20 | 20000 | Φ500-3500 | Φ350×120 | 2×Φ340×35 | 6-60 | 2×1.1 | ||
| HGK-40 | 40000 | Φ600-4200 | Φ400×120 | 2×Φ390×45 | 6-60 | 2×1.5 | ||
| HGK-60 | 60000 | Φ750-4800 | Φ450×120 | 2×Φ440×60 | 6-60 | 2×2.2 | Bolt shift | |
| HGK-80 | 80000 | Φ850-5000 | Φ500×120 | 2×Φ490×70 | 6-60 | 2×3 | ||
| HGK-100 | 100000 | Φ1000-5500 | Φ500×120 | 2×Φ490×80 | 6-60 | 2×4 | ||
| HGK-150 | 150000 | Φ1100-6000 | / | Φ620×220 | 6-60 | 2×4 | ||
| HGK-250 | 250000 | Φ1100-7500 | / | Φ660×260 | 6-60 | 2×5.5 | ||
| HGK-400 | 400000 | Φ1100-7500 | / | Φ750×320 | 6-60 | 2×7.5 | ||
| HGK-500 | 500000 | Φ1100-7500 | Φ750×400 | 6-60 | 2×11 | |||
