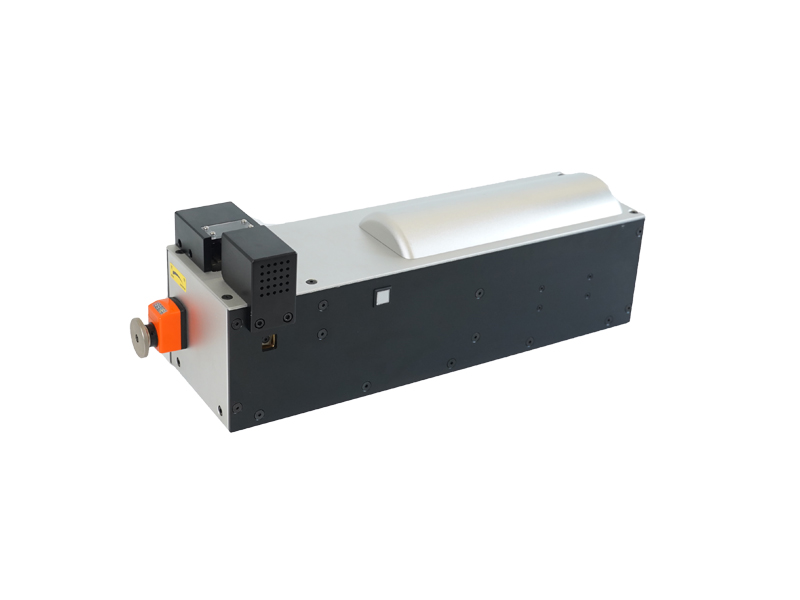

Manual wire harness machine

Model characteristics
Manual adjustment for a single product
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used


Scope of application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc


Frame selection
Wy-20XS030L 25mm2 rack
Wy-20XS060L 50mm2 rack


Technical parameter
Rack model :Wy-20XS030L Rack model :Wy-20XS060L
Maximum power :3.0KW Maximum power :6.0KW
Operating frequency :20KHz Operating frequency :20KHz
Power input :220AC /50Hz Power input :380AC/50Hz
Air source input :min0.65MPa Air source input :min0.65MPa
Welding capacity :0.5~25mm2 Welding capacity :2.5~50mm2
Frame weight :20Kg
Rack size :535x168x178mm
