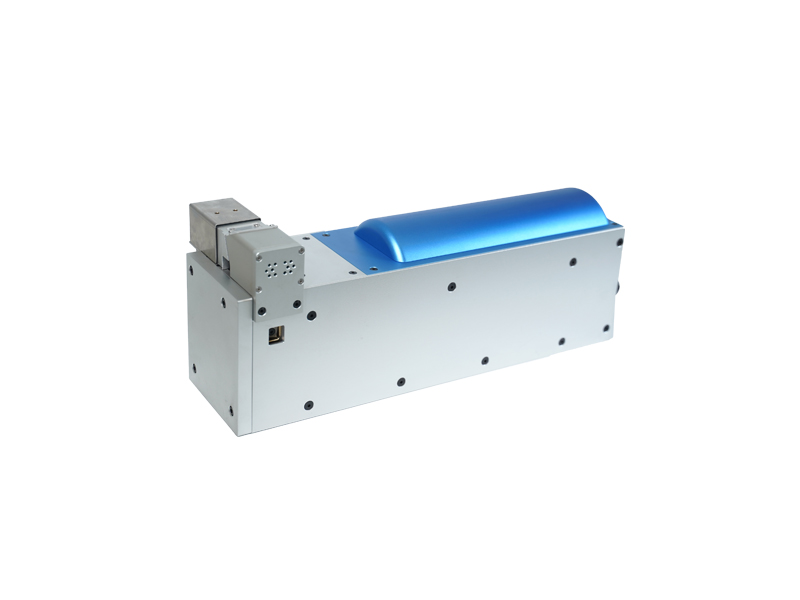

Automatic wire harness machine

Model characteristics
Automatic adjustment, can be connected to MES system
Lap welding process between multiple conductor and conductor
Copper, aluminum, or copper-aluminum cables can be used
Comes with quality monitoring software


Scope of application
Automobile wire harness processing, wire ends into knots
Transformer leads, relay leads, etc


Frame selection
Wy-20XS030H 25mm2 rack
Wy-20XS060H 50mm2 rack


Technical parameter
Rack model: Wy-20XS030H Rack model: Wy-20XS060H
Maximum power: 3.0KW Maximum power :6.0KW
Operating frequency: 20KHz Operating frequency: 20KHz
Power input: 220AC /50Hz Power input :380AC /50Hz
Air source input: min0.65MPa Air source input: min0.65MPa
Welding capacity: 0.5 ~25mm2 Welding capacity: 2.5 ~ 50mm2
Frame weight: 20Kg
Rack size: 483x1 95x165mm
