Project Time:
September 2023
Usage model: QJ-010
Project period: -- period

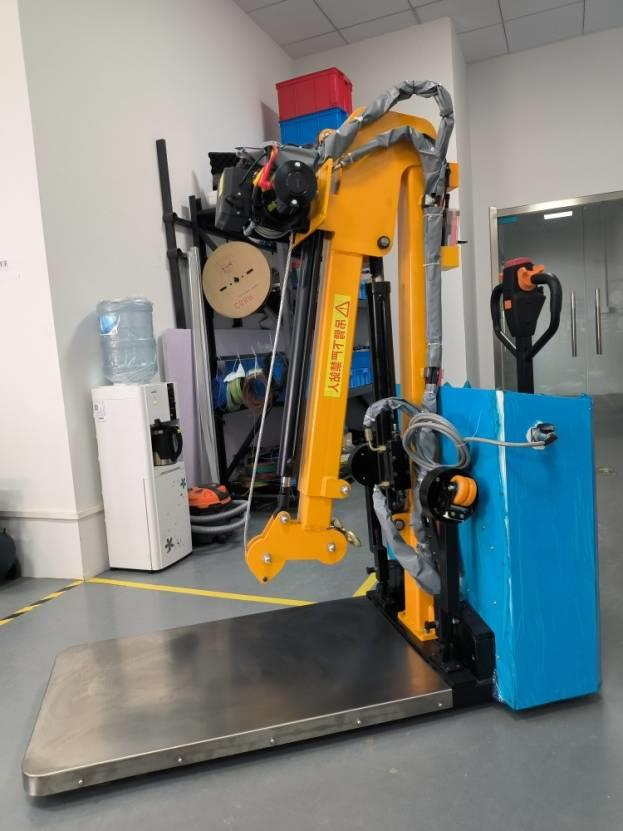

AGV quantity: 2 AGVs+4 sets of customized mobile lifting arms

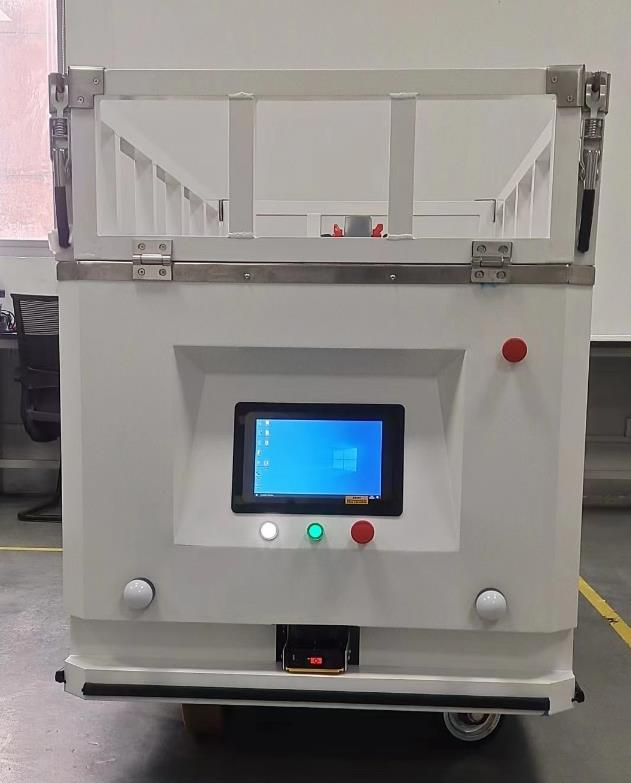

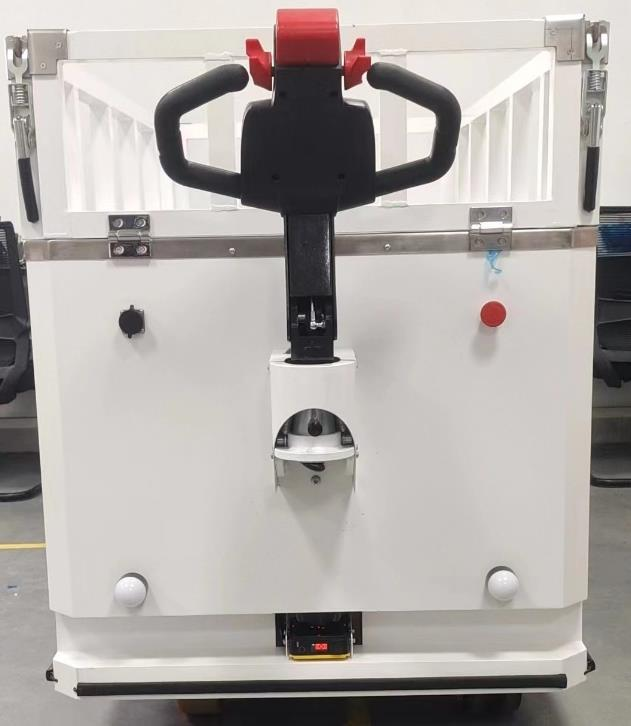

Project Description: The client is a large-scale animal laboratory dissector, and the intelligent transport vehicle is used to transport
A device for transporting large animals from the breeding room to the operating room. Intelligent transport vehicles can be operated by operators
Under control, it is possible to load, transport, and unload materials.
Specification
| Rated load | 800kg |
| Number of wheels | 4N° |
| Steering angle (β) | 360° |
| Walking speed | 3km / h on flat surface, 2km / h on slopes |
| Travel motor*4 | 1kw / 48v |
| Special directional motor*4 | 0.2kw / 48v |
| Battery | 25Ah / 48v |
| Battery weight | 15kg |
| Driving wheel size*4 | Φ250×64mm |
| Climbing gradient (full load / no load) | 6% / 12% |
