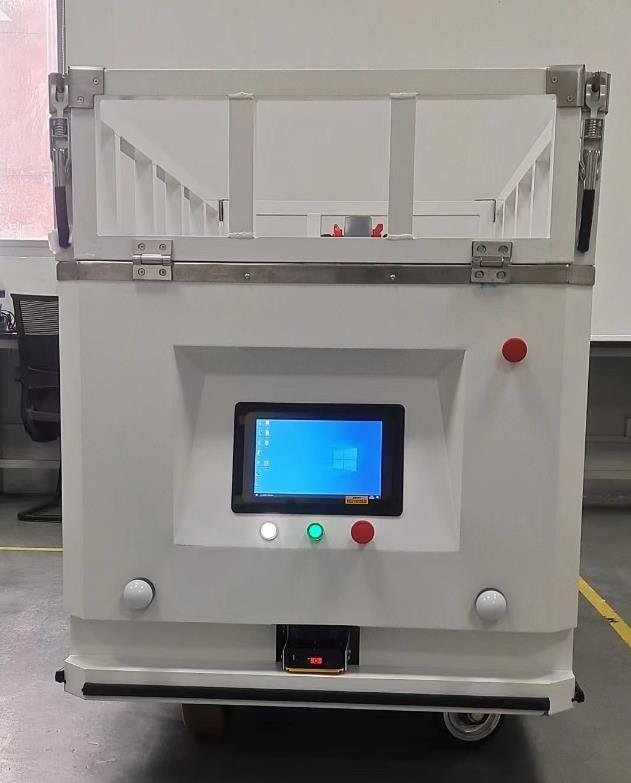

AGVs Type- Laboratory Large Animal Intelligent Transport

Project Time:
September 2023
Usage model: QJ-010
Project period: -- period
AGV quantity: 2 AGVs+4 sets of customized mobile lifting arms
Project Description: The client is a large-scale animal laboratory dissector, and the intelligent transport vehicle is used to transport
A device for transporting large animals from the breeding room to the operating room. Intelligent transport vehicles can be operated by operators
Under control, it is possible to load, transport, and unload materials.

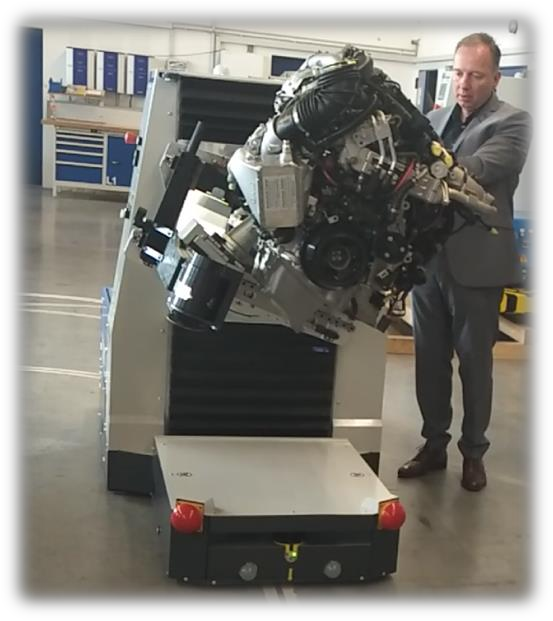

AGVs Type- Automobile Engine Assembly Line

Project time: November 2018
Cumulative use area: 5000 square meters
Model used: P-1000
Number of AGVs: 35 units
Project description: This customer introduced AGV as the main platform for engine assembly, and evacuated the traditional engine production line to facilitate assembly by workers, and realized the automated online assembly function of AGV, which can interact with lineside robots and production equipment. AGV realizes At the same time as the beat is being assembled. Reduce the process and time of changing product lines of different models and categories.

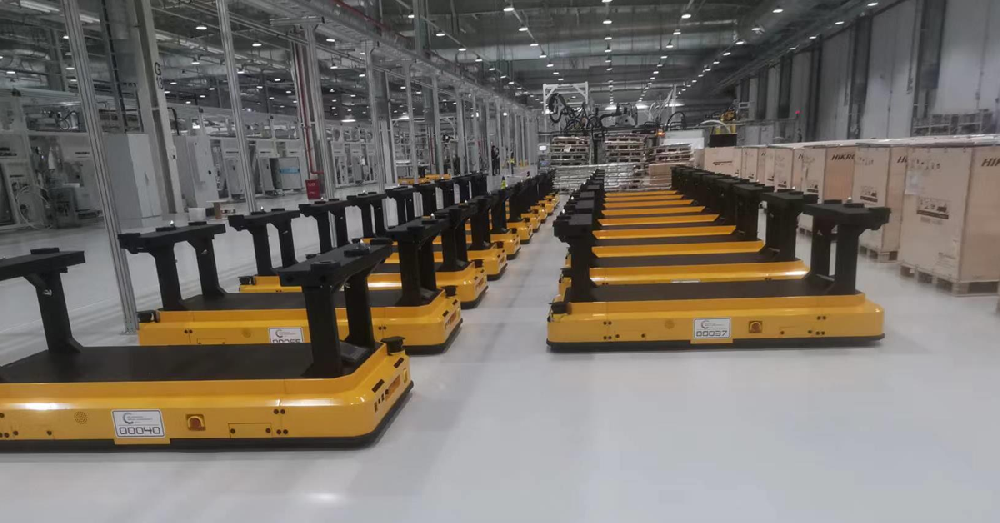

AGVs Type- Hefei Volkswagen Battery Warehouse

Operating mode: Go&Stop
Load weight: 650kg
AGV size: 2000x1000x600mm
Drive mode: Differential steering wheel
Running direction: forward/reverse/sideways/turning
Stopping accuracy: ± 3mm;
Power supply: 48V60AH LiFePO4 battery
Navigation and positioning: ribbon QR code
Communication: WLAN
Scheduling system: PC scheduling
Safety protection: emergency stop/safety scanner/sound and light alarm

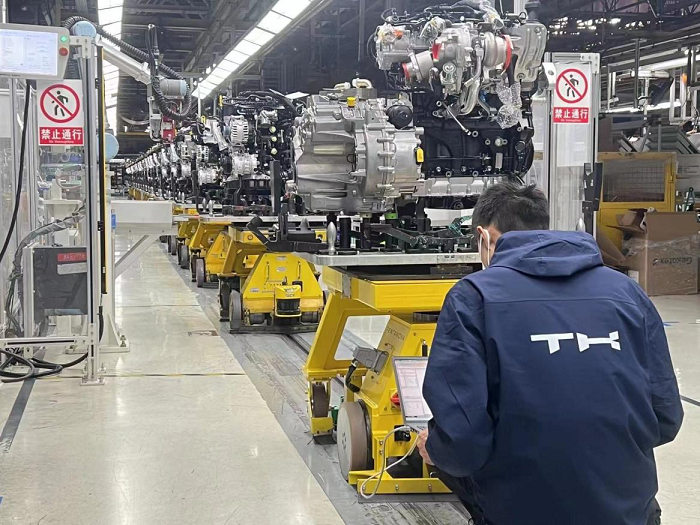

AGVs Type- FAW-Volkswagen Engine Assembly Line Workshop

Operating mode: Go&Stop
Load weight: 500kg
AGV size: 1150x700x655mm
Drive mode: Differential wheel
Speed: Max 24 m/min
Driver: miControl (canopen)
Running direction: forward/reverse/turn
Stopping accuracy: ± 5mm
Power supply: wireless power supply
Navigation and positioning: mechanical or electromagnetic induction
Communication: WLAN
Scheduling system: PLC scheduling
Safety protection: emergency stop/safety scanner/sound and light alarm

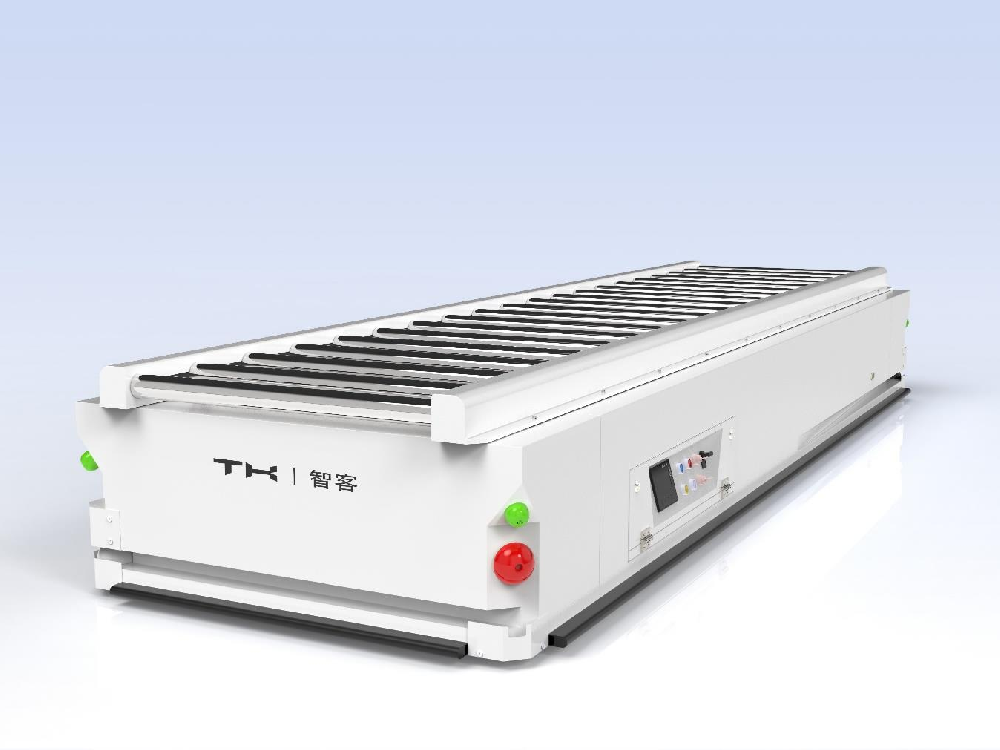

AGVs Type- 1.5T Double Steering Wheel Rolling Bed Jacking Slam Omnidirectional AGV

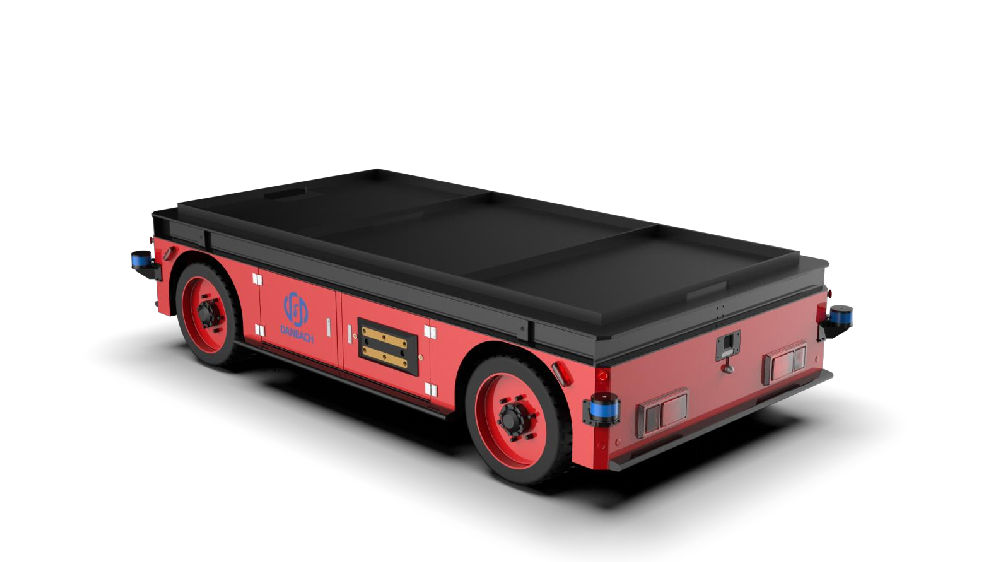

AGVs Type- Heavy Load AGV

Load capacity 5-120 tons
Maximum speed 6 meters/second
Single drive/multiple drives
Outdoor waterproof and rainproof
Can be used for intra-station transfer of multiple pallets or containers at one time

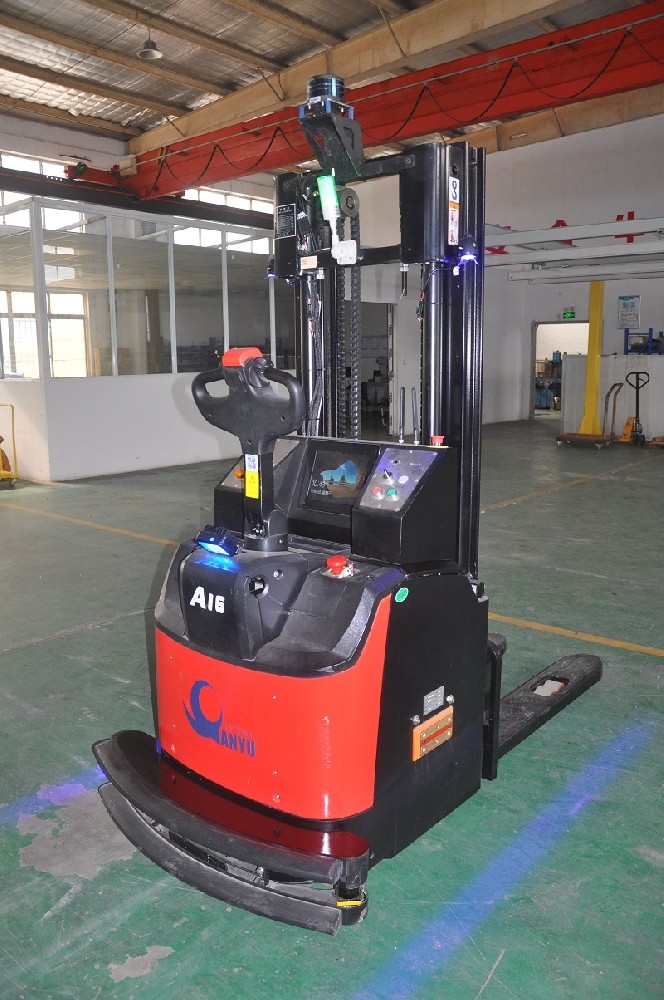

AGVs Type- Automated Forklift

If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely.

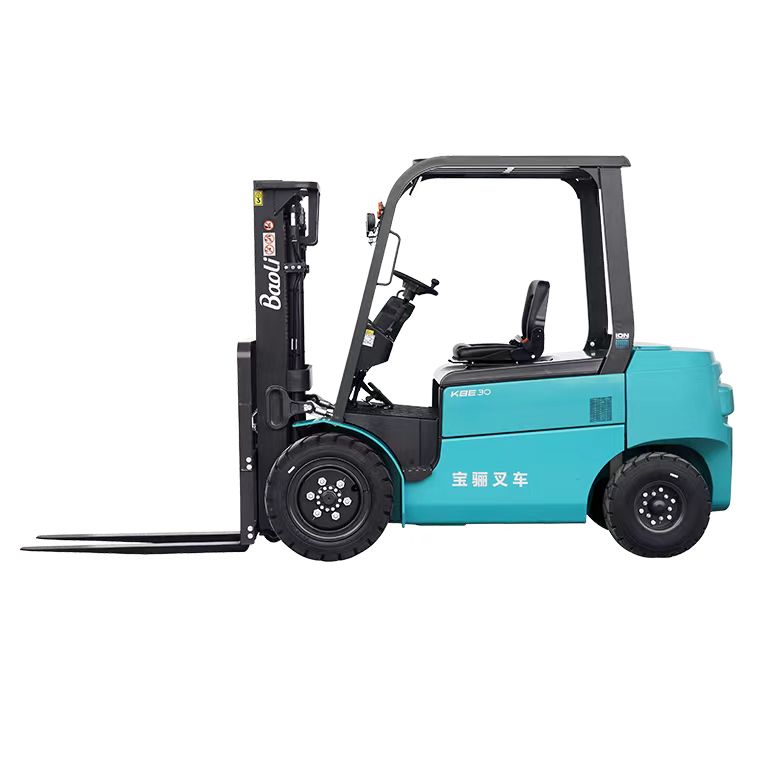

Forklift

If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely
