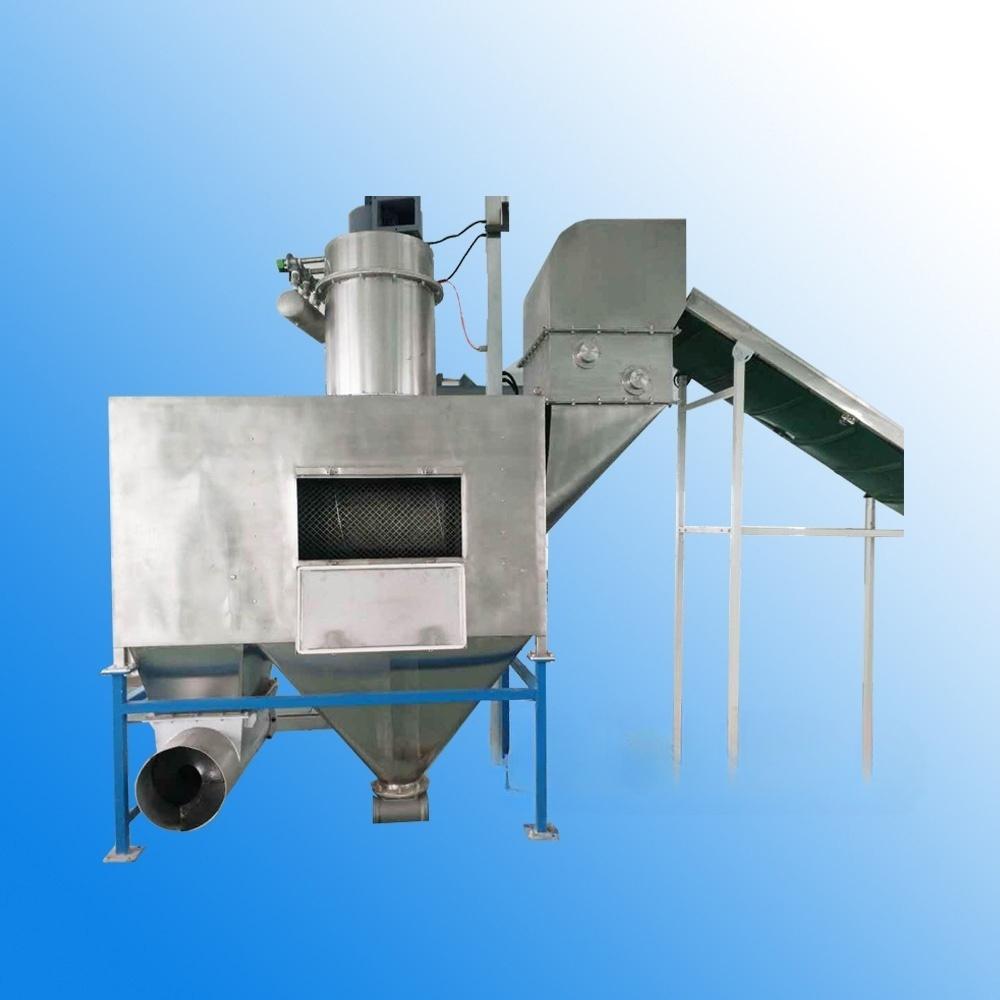

SQHCB series automatic unpacking machine is used for unpacking and unloading of bagged powder and granular materials. In the fields of chemical industry, petroleum, building materials, metallurgy, electric power, food, medicine, grain, environmental protection and other fields, the automatic bag removal and unloading operation of dry powdery materials is completed by means of automatic bag feeding by belt conveyor, automatic bag breaking by cutter device, automatic bag separation and unloading by vibrating screen, etc.
Specification
| Bag breaking capacity | 2300 packages/hour (maximum) |
| Overall power | 10-17kw |
| Note: The configuration, output, material and power of the whole set of equipment of the automatic unpacking machine are changed due to changes in material properties, use occasions, discharging methods, etc. | |
characteristic
1. The bag breaking process and the material separation process are conducted in a totally closed manner, and each process is equipped with a dust collector, so there is no dust leakage, and the noise is low, which improves the working environment of workers.
2. Only one or two people are required to place the packaging bags on the belt conveyor on site, which reduces the work intensity of workers.
3. The equipment is simple and reliable in operation, with low failure rate and reduced maintenance workload.
4. The equipment is specially designed so that the broken packaging bags can be separated from the materials perfectly, and will not be mixed into the materials or hung in the separation device.
5. The equipment can count automatically, and can set the bag loading amount at will. When the set bag loading amount is reached, the equipment will stop automatically.
6. Automatic alarm and emergency stop in case of equipment failure to protect equipment and avoid personnel misoperation.
7. After bag breaking, unloading and separation, it can be used together with other conveying equipment to complete the functions of powder conveying and storage.
8. Different sizes of bags can be handled without adjusting the equipment.
