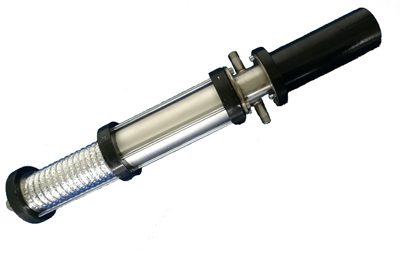

Integrated high temperature industrial TV gathered retraction system and camera & lens probe together, which is quite different from traditional separated one.
For the small camera is put inside the rod of cylinder,it is obliviously this structure is more portable, and requires less installation space.
The whole system is quite suitable to vacuum oven and positive-pressure furnace, which with a highly requirement of leakproofness.
Feature
Cylinder and probe together:good leakproofness,tight structure.
Wall type and endoscopic type together:users can adjust probe and baseplate.
Viewing camera and pyrometer together: display both images and temperature.
Screen and control box together: control box adjust system also display images.
Specification
| Pyrometer Parameters | Camera Parameters | ||
| Temperature Range | 600～1800℃ | Analog Resolution | 700～1200 lines |
| Accuracy | ±1%FS, repeat accuracy±2‰ | IP Resolution | 1.3-2 mega pixel |
| Resolution | 1℃ | Optical Zoom | 5～10x |
| Emissivity | 0-0.99 | Digital Zoom | 10-30x |
| Temperature Mode | Instant, Peak and Averaging | Communication Mode | coaxial video temperature control |
| D:S | 120 : 1 | Cooling Mode | Air cooling only / air & water cooling |
| Focusing Range | 0.6m～∝Infinity | Furnace Max Temperature | 2000℃ |
| Min.Object | ＞Φ5mm | Retraction System | temperature, pressure, flow |
| Power Supply | 15～24VDC | Air Inlet Pressure | ≧0.3Mpa |
| Power Consumption | 150mA (max) | Air Consumption | ≈20m3 |
| Output | 4～20mA、1～5V、RS485 | Power Consumption | Cylinder 5W, motorized 80W |
