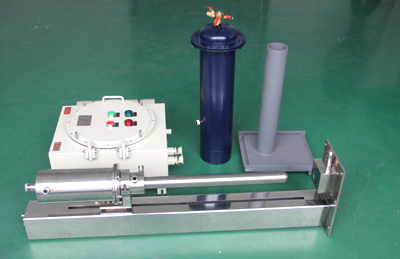

Including SG-FV450/550/650/750/850/1100/3000/4000.
Our high-temperature CCTV camera monitoring systems provide plant engineers and operators in the control room with views of burner flames, material alignment and movement, and other process conditions in furnace, kiln, heating stove or other combustion chamber.
We use special CCD color camera above 480 lines, elbow viewing pinhole lens and the stainless steel camera housing with water or air cooling system, enabling the system working in the environment up to 2000°C.
SG-FV series can be inserted 400mm-4000mm into the furnace.
The system has auto-retraction function. The camera will exit out of the furnace, when the temperature in the inner of camera housing is higher than the setting value or the pressure of compressed air lower than the setting value or the power failures.
Application in Glass furnace, Cement kiln, Metal reheat furnace, Power furnace,etc.
Specification
| Environment | Up to 2000℃ | H.Resolution | More than 480 TV lines |
| Cooling System | Vortex air / Water cooling | Video Output | Composite Video, 1 Vp-p, 75 |
| Transmission Device | Pneumatic(SG-FV) or motorized (SG-FV/D) | S/N Ratio | More than 50dB(AGC off) |
| Furnace Wall Thickness | 400-4000mm | Shutter Speed | 1/50~1/100000(10 steps) |
| Power | AC 220V 100W / 120W | Min Illumination | 0.2Lux(F1.2, 30 IRE) / 0.001Lux(F1.2, X128 DSS) |
| Requirement of compressed air | Power Source | AC24V | |
| Pressure | 0.2~0.7MPa | Power Consumption | Max.6W |
| Volume Flow | 5-20m³/h | Pinhole lens | |
| Temperature | ≤35℃ | Lens Length | 330-1500mm Standard systems optional 330mm, 500mm, 600mm, 820mm, 1100mm |
| Quality | Industrial air or instrument air | Focal Length | Fixed 3.5mm or adjustable from 3.6-18mm |
| Requirement of cooling water | Angle of View | 10°-100° | |
| Inlet Pressure | 0.1~0.7MPa | Lris | manual or motorized or fixed |
| Volume Flow | 0.2-1m³/h | Image Format | 1/3" |
| CCD Camera | Lens Elbow Angle | 60° / 75° / 90° | |
| Image Sensor | 1/3"Sony Color CCD Sensor | Mount | CS |

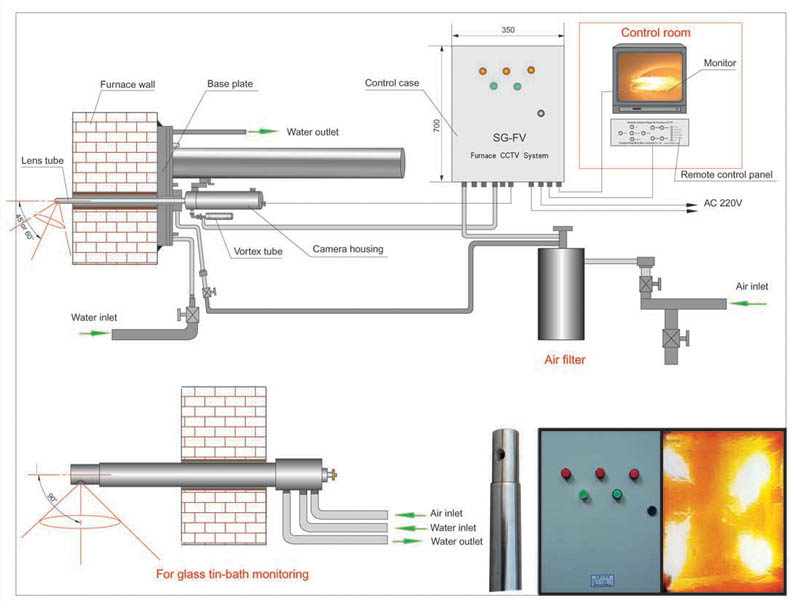

Diagram
