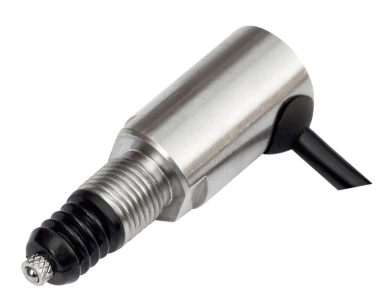

THB08-4 displacement sensor is used to measure the external dimensions of products. It can be used alone and outputs a signal of 0.5-4.5V. It can also be used with a transmitter. The transmitter can be equipped with multiple displacement sensors. The transmitter analyzes and processes the collected displacement sensor signals, obtains the appearance size data of the product being detected, and provides a result of whether the structural size is qualified. If necessary, further correction information can be provided.
Specification
PRODUCT PARAMETERS：
| Measuring range: | 4mm |
| Repeat accuracy: | 0.003mm |
| Linear accuracy: | 0.25%F.S |
| Resolution: | 0.001mm |
| Response time: | ≤0.5ms |
| Supply voltage: | 9-28VDC |
| Protective structure: | IP67, corrosion resistant |
| Life: | ≥2 million |
| Contact force: | ≤0.6N |
| Temperature drift: | 0.25%/C/F.S |
| Temperature range: | 0℃~80℃ (no freezing) |
| Contact rating: | DC5V~DC24V, steady-state current below 10mA (rush current below 20mA) |
| Output signal: | 0.5-4.5V, RS485 signal/switch signal (4/8 channel collection) |
| Output mode: | Voltage signal, digital signal |
| Service life: | 1 million times |
| Outgoing method: | Side routing |
| Lead wire length: | 3 meters |
