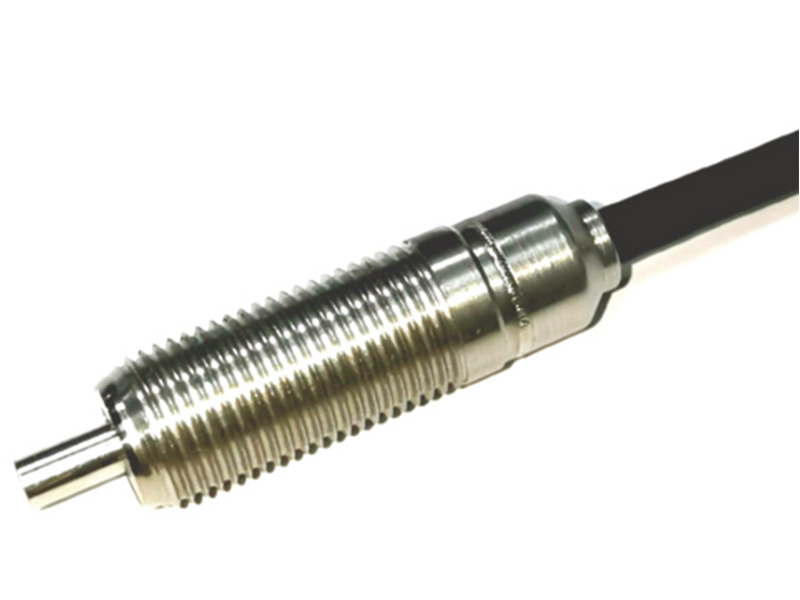

TVH8-2.5 displacement sensor is used to measure the external dimensions of products. It can be used alone to output switching signals. It can also be used with a transmitter. The transmitter can be equipped with multiple displacement sensors. The transmitter analyzes and processes the collected displacement sensor signals to obtain the appearance size data of the product being detected, and at the same time gives a result of whether the structural size is qualified. , and further correction information can be given if necessary.
Specification
Performance parameters:
The threaded part is medium 8 and the total length is 33 mm;
Waterproof level: IP67, resistant to cutting fluid corrosion;
Power supply voltage: 5-15VDC (±10%);
Displacement stroke: 2.5 mm;
Action distance: 0.5mm (triggered by 0.5mm movement);
Repeat accuracy: 1um;
Contact force greater than: 0.7N;
Output mode: switching output, high frequency output in static state, low frequency output after triggering;
Outlet method: end outlet;
Service life: 1 million times;
Working temperature: -25~+85℃;
Storage temperature: -40~+105℃;
Temperature and humidity: 0-95%;
Shell material: SUS304.
