Specification
| Project | Parameter |
| Nominal voltage | 28.8V |
| Nominal capacity | 77Ah |
| Nominal power | 2217.6Wh |
| Maximum charging voltage | 33.6V |
| Discharge cutoff voltage | 20V |
| Standard charging current | 15A |
| Maximum charging current | 40A |
| Standard discharge current | 15A |
| Maximum continuous discharge current | 50A |
| Communication | RS422 |
| Size | 280×215×180mm |
| Weight | 15kg |
| Charging ambient temperature | -30℃～45℃ |
| Discharge ambient temperature | -40℃～55℃ |
| Storage ambient temperature | ﹣45℃～60℃ |
If you want to know more about the application and parameters of the product, please feel free to contact us. We are willing to serve you sincerely.

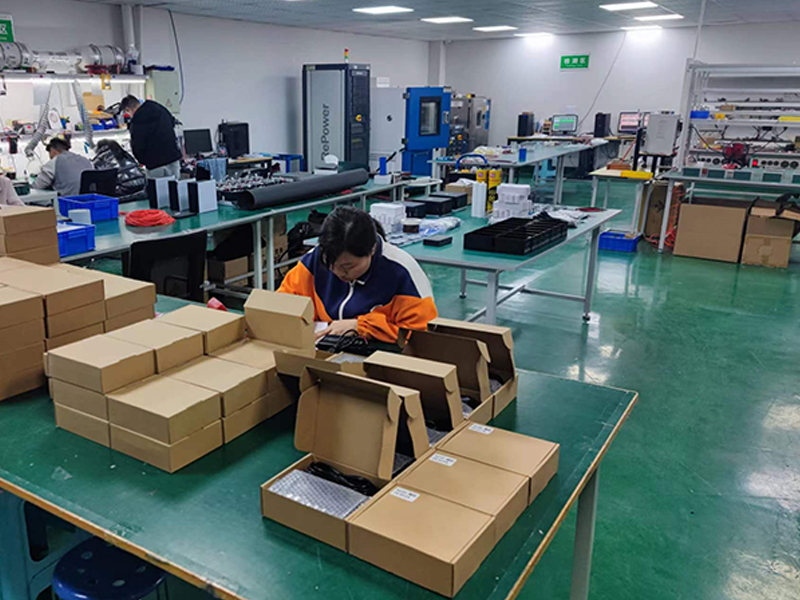

Production
