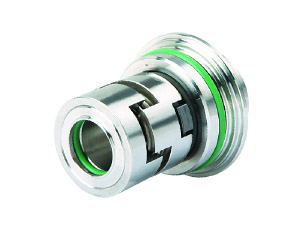

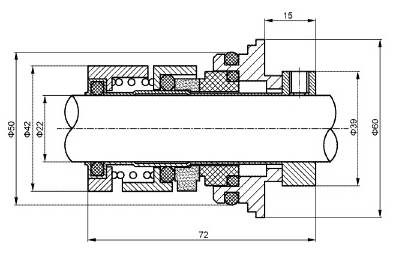

HCH-22

Technical parameters:

Sealing chamber temperature: -20 ℃+180 ℃

Sealing chamber pressure: ≤ 12bar

Linear speed: ≤ 10m/s

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber

Spring and metal parts: 304316
