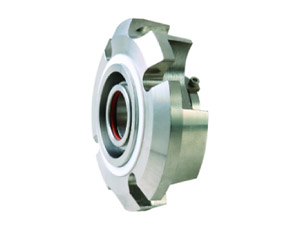

HC5615

Technical parameters:

Sealing chamber temperature: -30 ℃+205 ℃

Linear speed: ≤ 25m/s

Sealing chamber pressure: ≤ 16bar

Shaft diameter size: 24-75mm or 1 "-3"

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, perfluorocarbon rubber

Spring and metal parts: 304316, Hastelloy alloy
