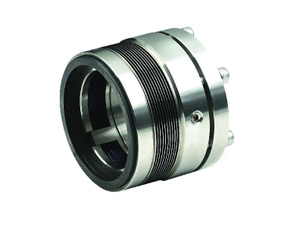

HC606

Technical parameters:

Sealing chamber temperature: -20 ℃+425 ℃

Linear speed: ≤ 25m/s

Sealing chamber pressure: ≤ 25bar

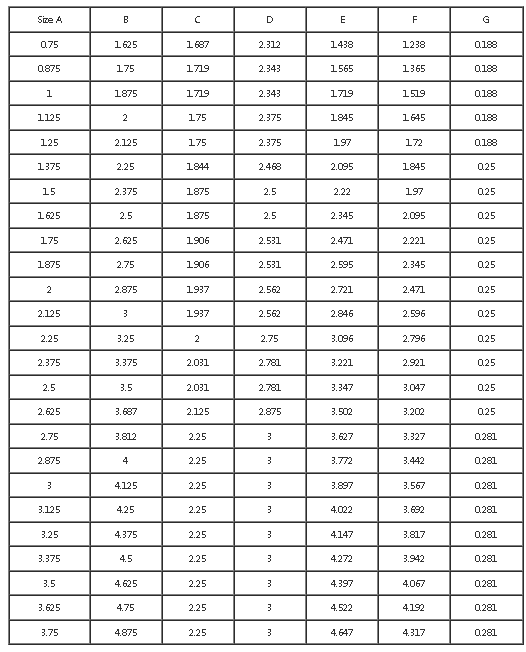

Shaft diameter size: 0.75 "-3.75"

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary seal: flexible graphite

Spring and metal parts: 304316, AM350, HAST.C, In718, Ti
