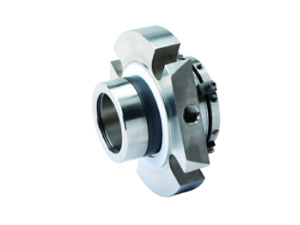

HCCartex-DN

Technical parameters:

Sealing chamber temperature: -50 ℃+204 ℃

Linear speed: ≤ 23m/s

Sealing chamber pressure: ≤ 20bar

Shaft diameter size: 25-100mm

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, perfluorocarbon rubber

Spring and metal parts: 304316, Hastelloy alloy
