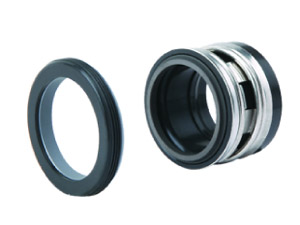

HC2100

Technical parameters:

Sealing chamber temperature: -40 ℃+150 ℃

Linear speed: ≤ 15m/s

Sealing chamber pressure: ≤ 16bar

Shaft diameter size: 10-100mm

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, tetrapropylene fluorine rubber

Spring and metal parts: 304316
