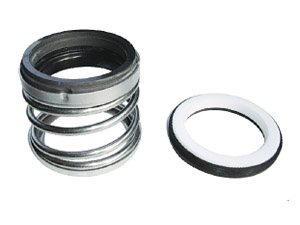

HCBIA

Technical parameters:

Sealing chamber temperature: -20 ℃+120 ℃

Linear speed: ≤ 15m/s

Sealing chamber pressure: ≤ 10bar

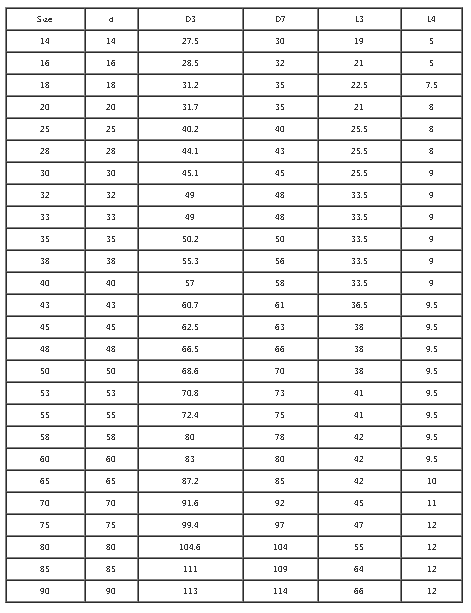

Shaft diameter size: 14-90mm

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber, tetrapropylene fluorine rubber

Spring and metal parts: 304316
