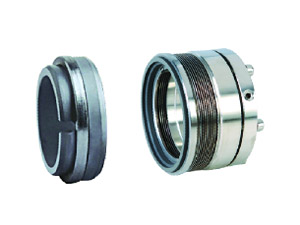

HCMFLWT

Technical parameters:

Sealing chamber temperature: -40 ℃+400 ℃

Linear speed: ≤ 20m/s

Sealing chamber pressure: ≤ 25bar

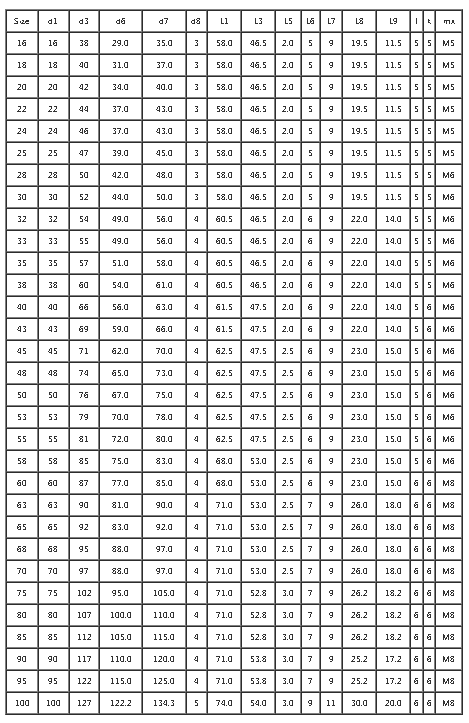

Shaft diameter size: 16-100mm

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary seal: flexible graphite

Spring and metal parts: 304316, Hastelloy alloy, AM350, In718, Ti
