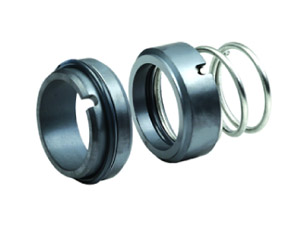

HCM3N/M32/M37/M37G

Technical parameters:

Sealing chamber temperature: -20 ℃+180 ℃

Linear speed: ≤ 15m/s

Sealing chamber pressure: ≤ 10bar

Shaft diameter size: 10-80mm

Material combination:

Sealing surface: graphite, reactive silicon carbide, pressureless silicon carbide, tungsten carbide

Auxiliary sealing: nitrile rubber, fluorine rubber, ethylene propylene rubber

Spring and metal parts: 304316
