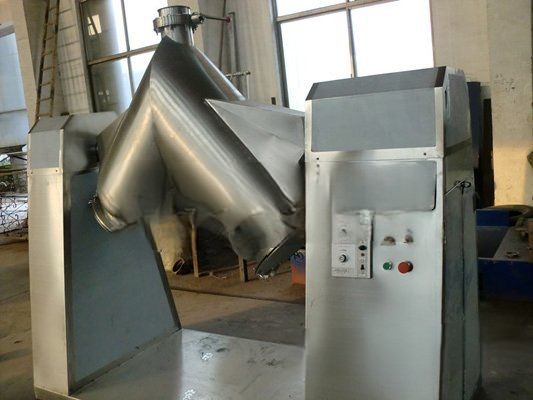

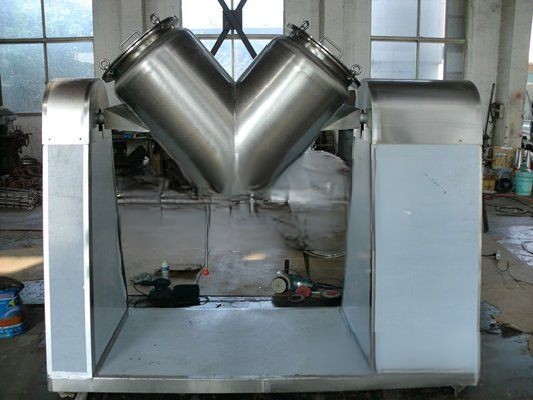

VHJ series mixer
Performance characteristics
The mixing cylinder has a unique structure, high mixing efficiency, no dead angle, the cylinder is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and it has a wide range of uses.
Applicable materials
This machine is used for mixing dry material particles in industries such as medicine, chemical industry, food and metallurgy.
Specification
| SpecificationsItems | Total volume | Working volume | Feed amount | Feeding speed | power | Weightkg |
| L | L | kg | rpm | kw | _ | |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
