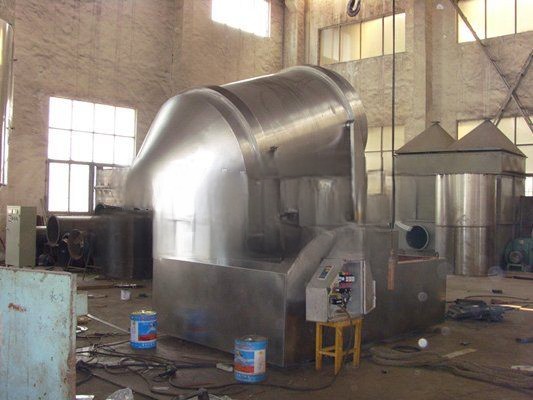

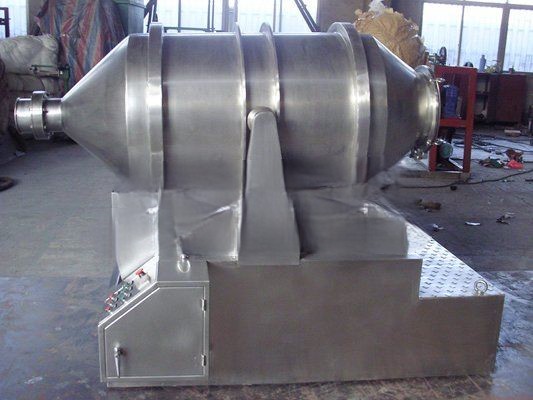

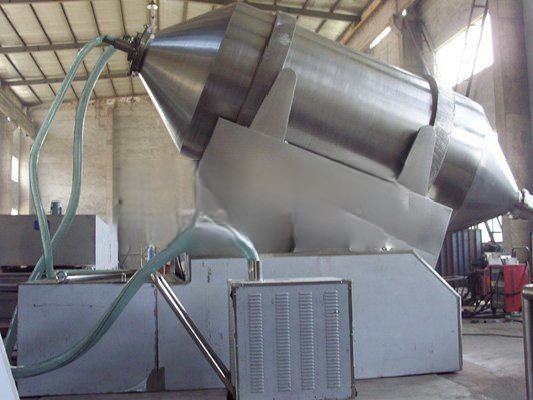

EYH series two-dimensional motion mixer

Working principle
　　The two-dimensional mixer is mainly composed of three parts: the drum, the swing frame and the frame. The drum is installed on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two transmission wheels are driven by the rotating power system to make the drum rotate. The oscillating frame is driven by a set of crank and oscillating rod mechanisms, the crank and oscillating rod mechanism is on the frame, and the oscillating frame is supported on the frame by the bearing assembly.
Performance characteristics
　　 The drum of the EYH two-dimensional mixer can perform two movements at the same time, one is the rotation of the drum, and the other is the swing of the drum with the swing frame. While the material to be mixed rotates, turns, and mixes with the drum in the drum, it also undergoes a back-and-forth mixing movement with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time the mix of. EYH two-dimensional mixer is suitable for mixing all powder and granular materials.
