Mixing Equipment

•

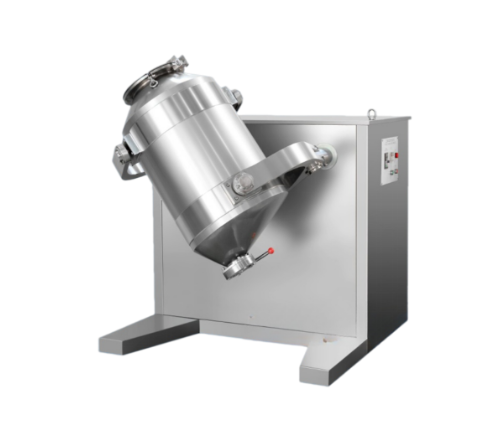

  3D Motion Mixer

  The machine is composed of a base, a speed regulating motor, a shaft, a rotary connecting rod, a cylinder, etc. The loaded cylinder is driven by the driving shaft to perform a combined movement such as horizontal movement and rock movement, which promotes the material to perform circumferential, radial and axial three-way combined movement along the cylinder, thus realizing the mutual flow, diffusion and doping of various materials, so as to achieve the goal of high uniformity mixing.

  contact us
•

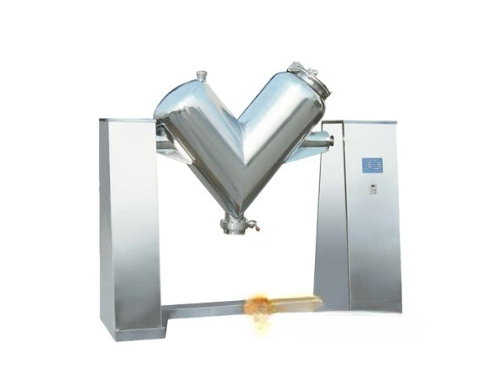

  V-Shaped Mixer

  V-type high efficiency mixer is a new type, high efficiency, fine container rotation, mixing equipment. It is used for the uniform mixing of various powdery and granular materials, with a high degree of mixing. It can also achieve a good degree of mixing for ingredients with a small amount of addition. This machine is a proprietary product of our company. It adopts mechanical seal, so the powder will not leak, and the service life of the bearing is long. The machine has high mixing efficiency, high working efficiency, low labor intensity and convenient operation. It can be widely used in magnet, ceramics, chemical, pharmaceutical, feed and other industries.

  contact us
•

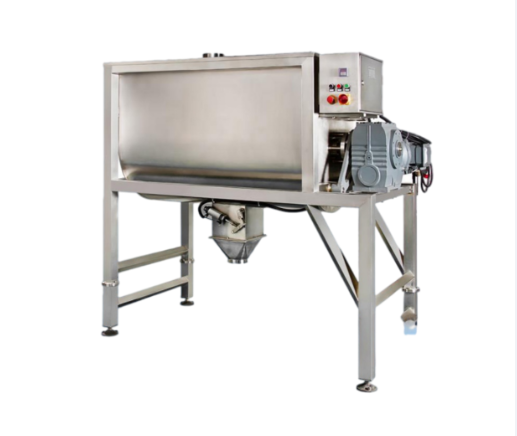

  Horizontal Spiral Belt Mixer

  The horizontal spiral belt mixer is composed of a U-shaped container, spiral belt mixing blades and transmission parts; The spiral ribbon blade is a double-layer structure. The outer spiral collects materials from both sides to the center, and the inner spiral transports materials from the center to both sides, forming convection mixing. The spiral belt mixer has a good effect on the mixing of sticky or cohesive powder particles and the mixing of liquid and paste materials added to the powder particles. The cylinder cover can be made into a fully open door to facilitate the cleaning and product replacement of the equipment.

  contact us
•

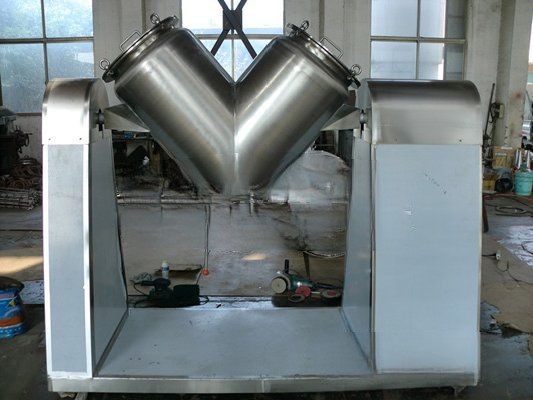

  VHJ series mixer

  VHJ series mixer




  Performance characteristics
  　　The mixing cylinder has a unique structure, high mixing efficiency, no dead angle, the cylinder is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and it has a wide range of uses.
  Applicable materials
  　　This machine is used for mixing dry material particles in industries such as medicine, chemical industry, food and metallurgy.

  contact us
•

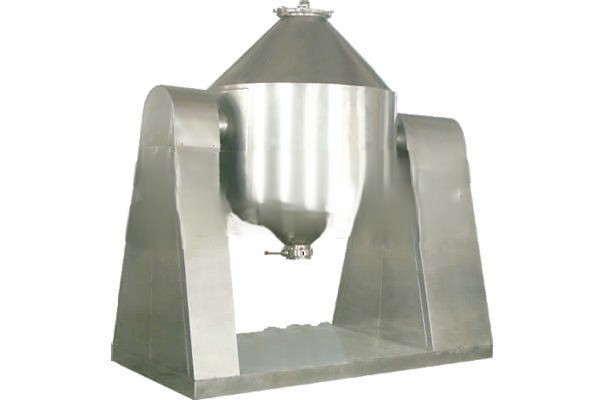

  SZH series double cone mixer

  Performance characteristics
  ◎This machine conveys powder or granular materials into the double-cone container through vacuum conveying or manual feeding. With the continuous rotation of the container, the materials perform complex impact movements in the container to achieve uniform mixing.
  ◎This machine saves energy, is easy to operate, has low labor intensity and high work efficiency.
  Applicable materials
  ◎This machine is suitable for mixing powdery and granular materials in pharmaceutical, chemical, food, building materials and other industries.

  contact us
•

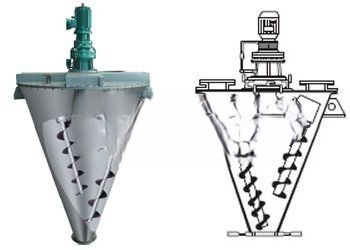

  DSH series double helix conical mixer

  Product overview
  　　The compound movement of the material in the cone is caused by the rotation of the screw, and there are mainly four types of movement:
  1. The screw revolves along the wall, making the material move in a circle along the cone wall;
  2. The screw rotation makes the material move from the bottom of the cone Spiral rising;
  3. The compound motion of the screw’s public and self-rotation makes part of the material be absorbed into the spiral cylindrical surface, and at the same time, under the centrifugal force of the screw’s rotation, part of the material in the spiral cylindrical surface is discharged radially to the cone;
  4. The ascending material is absorbed Self-gravity is reduced. The four movements produce convection, shear, and diffusion in the mixer, so as to achieve the purpose of rapid and uniform mixing.
  Equipment features
  ◎Flying knife can be added, spray and atomize assembly, to meet special process requirements.
  ◎The discharge valve has two modes: manual and pneumatic.
  ◎Special materials can increase the power of the motor (heavy type).
  Scope of application Applied
  　　to mixing and reacting powder and powder (solid-solid), powder and liquid (solid-liquid), liquid and liquid (liquid-liquid) in chemical industry, medicine, pesticide, dyestuff, petroleum, metallurgy, building materials, etc. , dry and cool.

  contact us
•

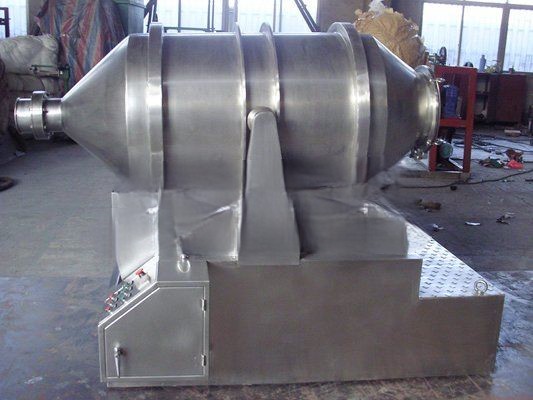

  EYH series two-dimensional motion mixer

  Working principle
  　　The two-dimensional mixer is mainly composed of three parts: the drum, the swing frame and the frame. The drum is installed on the swing frame, supported by four rollers and axially positioned by two retaining wheels. Among the four supporting rollers, two transmission wheels are driven by the rotating power system to make the drum rotate. The oscillating frame is driven by a set of crank and oscillating rod mechanisms, the crank and oscillating rod mechanism is on the frame, and the oscillating frame is supported on the frame by the bearing assembly.
  Performance characteristics
  　　 The drum of the EYH two-dimensional mixer can perform two movements at the same time, one is the rotation of the drum, and the other is the swing of the drum with the swing frame. While the material to be mixed rotates, turns, and mixes with the drum in the drum, it also undergoes a back-and-forth mixing movement with the swing of the drum. Under the joint action of these two movements, the material is fully mixed in a short time the mix of. EYH two-dimensional mixer is suitable for mixing all powder and granular materials.

  contact us
•

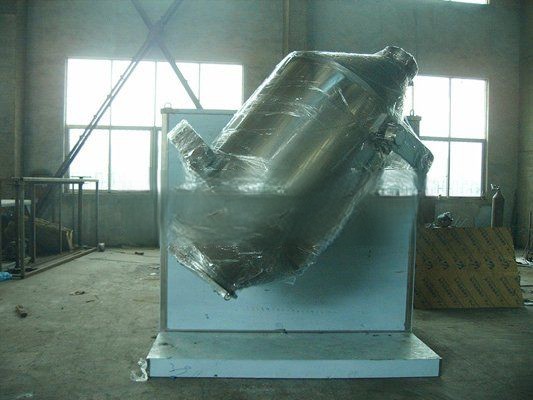

  SYH series three-dimensional motion mixer

  Performance characteristics
  Driven by the driving shaft, the cylinder for loading materials performs compound movements such as translation, rotation and rolling over and over again, which makes the materials move along the cylinder in three directions, so as to realize the mutual flow, diffusion and accumulation, doping. In order to achieve the purpose of uniform mixing.
  Adapt to the material
  ◎The mixing cylinder of this machine moves in multiple directions, the material has no centrifugal force, no gravity segregation, layering, and accumulation, each component can have a different weight ratio, and the mixing rate is high. It is an ideal product among various mixers at present. .
  ◎Cylinder filling rate is large, up to 90% (ordinary mixer is only 50%), high efficiency, short mixing time.
  ◎Every part of the cylinder is arc transitioned and has been precision polished. ◎Used for high uniformity mixing of powdery and granular materials in
  pharmaceutical, chemical, food, light industry, electronics, machinery, mining and metallurgy, national defense industries and various scientific research units. technical specifications

  contact us
•

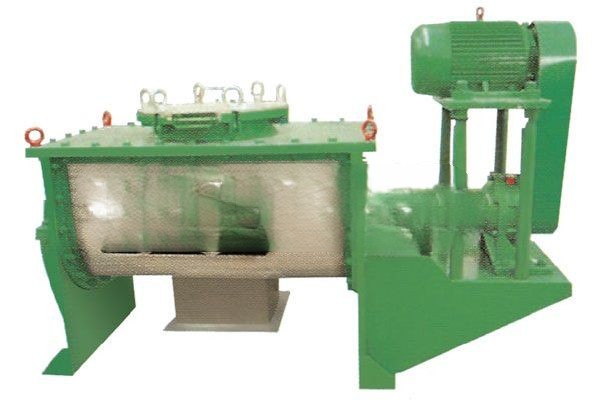

  WLDH Series Horizontal Ribbon Mixer

  Working principle
  This model is composed of container, spiral mixing blade and transmission parts: the spiral blade is generally made of double or triple layers, the outer spiral gathers the material from both sides to the center, and the inner spiral conveys the material from both sides of the center. Convective mixing is formed.
  Performance characteristics
  ◎Large loading factor, small equipment footprint:
  ◎When mixing viscous or cohesive materials, it is difficult to clean.
  Applicable materials
  ◎Ribbon mixer is generally used for mixing viscous or cohesive powders and granules, as well as adding liquid and pasty materials to powders and granules. At the same time, due to the characteristics of difficult cleaning of viscous materials, it is suitable for large output and low Mixed when the variety is changed frequently.

  contact us
•

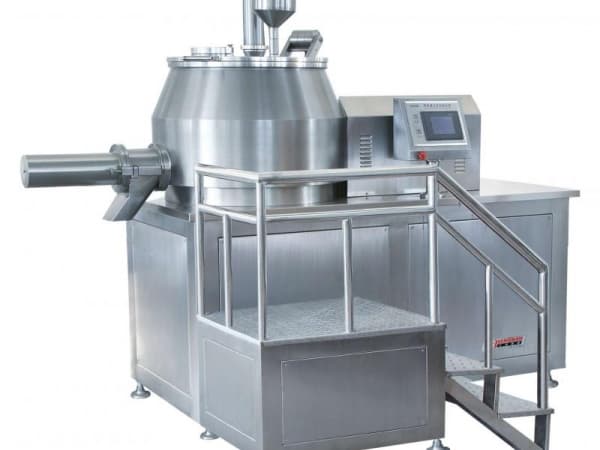

  High efficiency wet mixing granulator

  The powder is prepared by injecting adhesive wet particles into the fields of medicine, food, chemical industry, etc.

  contact us
•

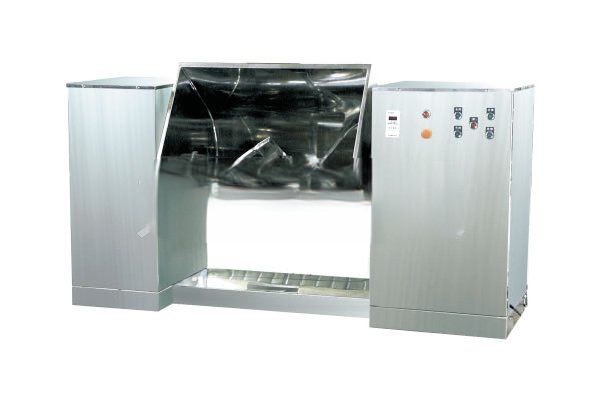

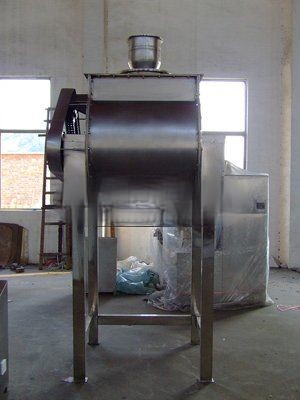

  CH series trough mixer

  Product introduction
  　　 It is used for mixing powdery or wet materials, so that the main and auxiliary materials with different proportions can be mixed evenly.
  Performance characteristics
  ◎The contact between the machine and the material is made of stainless steel. The gap between the paddle and the barrel is small, and there is no dead angle for mixing. There are sealing devices at both ends of the stirring shaft to prevent the material from leaking out.
  Suitable materials
  Widely used in pharmaceutical, chemical, food and other industries.

  contact us
•

  WZ series non-gravity mixer

  Working principle
  This series of mixers is characterized by strong and efficient mixing. The two stirrers in the horizontal cylinder rotate at the same speed and reverse. , to achieve uniform mixing in a very short time.
  Product Features
  1. High mixing precision, fast speed, low energy consumption, and sealed operation.
  2. Pneumatic, electric and manual discharge methods.
  3. An atomizing device can be arranged on the cylinder cover to realize solid-liquid mixing.
  Applications
  Chemicals, detergents, coatings, resins, glass silicon, pigments, pesticides, fertilizers, feed, feed additives, wheat flour, milk powder, spices, trace ingredients, coffee, salt, additives, plastics and various slurries and powders drying and mixing.

  contact us
•

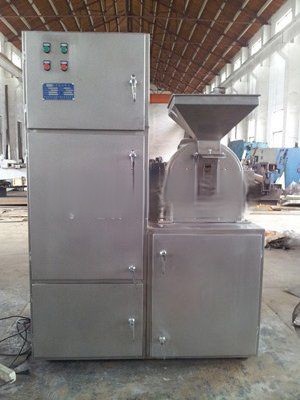

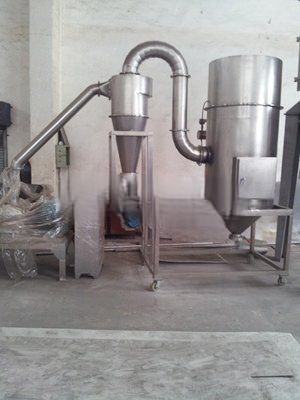

  30B series universal high-efficiency pulverizer (group)

  Features and uses
  This machine (group) is suitable for crushing brittle materials in industries such as medicine, chemical industry, food, and pesticides .
  Structure and principle
  This unit utilizes the relative movement between the movable toothed disc and the fixed toothed disc to crush the material through impact, friction and mutual impact between the teeth. The crushed materials automatically enter the predation bag under the action of rotating centrifugal force, and the dust is filtered and recovered from the dust collection box through the cloth bag. The machine is designed according to the "GMP" standard, all made of stainless steel, and there is no dust flying during the production process. And it can improve the utilization rate of materials and reduce the cost of enterprises, which has reached the international level.

  contact us
•

  WFJ series micro pulverizer

  Overview
  This machine is composed of three parts: main machine, auxiliary machine and electric control box. It has various performances such as winnowing type, no screen, and uniform particle size. The production process is carried out continuously. It is suitable for crushing brittle materials in pharmaceutical, chemical, food and other industries. .

  contact us
•

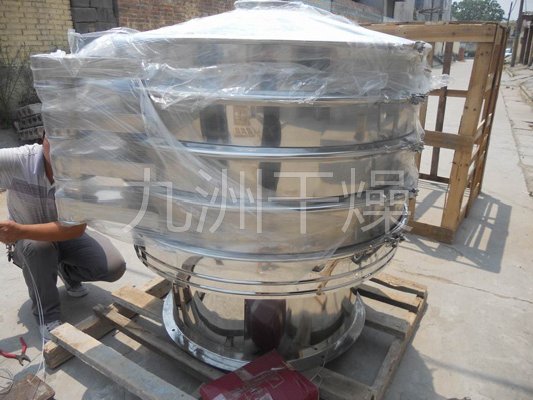

  ZS series circular vibrating screen

  Overview
  This machine is composed of a hopper, an oscillating chamber, a coupling and a motor. The oscillation chamber is composed of eccentric wheel, rubber software, main shaft, bearing and so on. The adjustable eccentric weight is driven by the motor and transmitted to the centerline of the main shaft, which generates centrifugal force in an unbalanced state, changes the strength of the material, and forms an orbital vortex in the screen. The amplitude of the weight regulator can be adjusted according to different materials and screens. The whole machine has compact structure, small size, no dust, low noise, high quality, low energy consumption, and convenient mobile maintenance.
