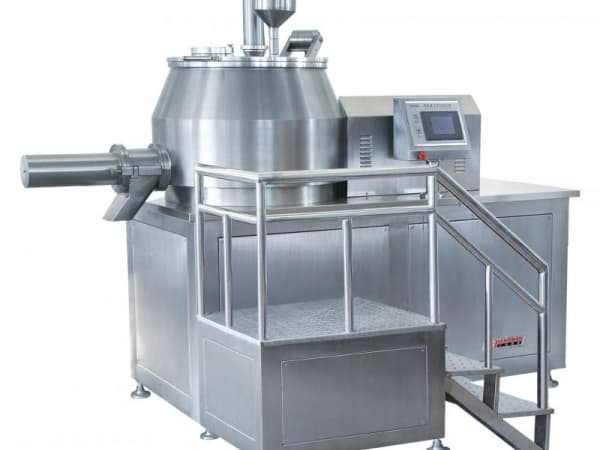

The powder is prepared by injecting adhesive wet particles into the fields of medicine, food, chemical industry, etc.
Specification
| Project | Speciications | ||||||||
| Name | Company | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Volume | L | 10 | 50 | 150 | 200 | 250 | 300 | 400 | 600 |
| Output/batch | kg/batch | 3 | 15 | 50 | 80 | 100 | 130 | 200 | 280 |
| Blend speed | r. p. m | 300/600 | 200/400 | 180/270 | 180/270 | 180/270 | 140/220 | 106/155 | 80/120 |
| Blend power | kw | 1.5/2.2 | 4/5.5 | 6.5/8 | 44815 | 44815 | 13/16 | 18.5/22 | 22/30 |
| Cutting speed | r. p. m | 1500/ | |||||||
| 3000 | |||||||||
| Cutting power | kw | 0.85/1. 1 | 1.3/1.8 | 2.4/3 | 4.5/5.5 | 4.5/5.5 | 4.5/5.5 | 6.5/8 | 9月11日 |
| Compressed air consumption | 3m /min | 0.6 | 0.6 | 0.9 | 0.9 | 0.9 | 1. 1 | 1.5 | 1.8 |
| Weight | kg | 250 | 500 | 800 | 1000 | 1300 | 1800 | 2200 | 2600 |
Feature
The machine adopts horizontal cylinder structure, with reasonable structure, no dead corner, no metal stain, and no ash. Inflatable seal drive shaft, which can be switched to water during cleaning. Fluidized granulation, nearly spherical, with good fluidity. Compared with the traditional process, the adhesive is reduced by 25% and the drying time is shortened. Each batch is dry mixed for 2 minutes, granulation for 1-4 minutes, and the work efficiency is 4-5 times higher than that of the traditional process. It is completed in the same closed container, dry mixing granulation granulation, and the process is reduced, meeting GMP specifications.
