Overview

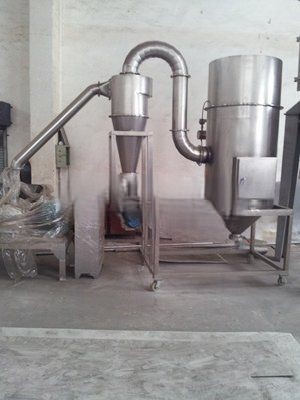

This machine is composed of three parts: main machine, auxiliary machine and electric control box. It has various performances such as winnowing type, no screen, and uniform particle size. The production process is carried out continuously. It is suitable for crushing brittle materials in pharmaceutical, chemical, food and other industries. .
Specification
| model | unit | WFJ-15 | WFJ-18 | WFJ-32 |
| production capacity | kg/h | 10-200 | 20-450 | 60-800 |
| Feed size | mm | <10 | <10 | <15 |
| Discharge granularity | mesh | 80-320 | 80-450 | 80-450 |
| total power | kw | 13.5 | 17.5 | 46 |
| main speed | r/min | 3800-6000 | 3800-6000 | 3800-4000 |
| Dimensions | mm | 4200×1200×2700 | 4700×1200×2900 | 9000×1500×3800 |
| weight | kg | 850 | 980 | 1500 |
