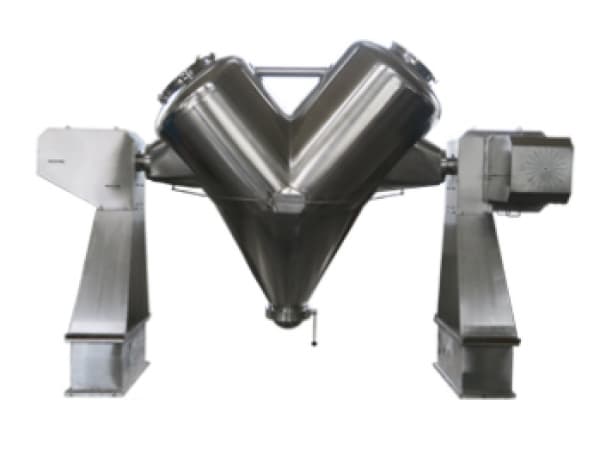

This machine is suitable for mixing more than two kinds of dry powder and granular materials in pharmaceutical, chemical, food and other industries. The mixing cylinder of the machine has a unique structure, high mixing efficiency, no dead corners, is made of stainless steel, the inner and outer walls are polished, the appearance is beautiful, the mixing is uniform, and the applicable surface is wide. It can also be equipped with a forced mixer according to the user's requirements, so as to adapt to the mixing of fine powder particles, blocks, and materials containing a certain amount of water.
Specification
| Model and speciication | VHJ-0 18 | VHJ-0 3 | VHJ-0 5 | VHJ-1 0 | VHJ-1 5 | VHJ-2 0 | VHJ-2 5 |
| Productive capacity (kg/time) | 72 | 120 | 200 | 400 | 600 | 800 | 1000 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 | W3 |
| Time of raw material fed in (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-13 | 8-15 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume (m3) | 0 18 | 0 3 | 0 5 | 1 | 1 5 | 2 | 2 5 |
| Stirring speed (r/min) | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Power of motor (kw) | 1 1 | 1 1 | 2 2 | 4 | 4 | 5 | 7 5 |
| Rotating height (mm) | 1 1 | 1760 | 2400 | 2840 | 3010 | 3240 | 3680 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 | 2040 |
Feature
This machine can use vacuum suction to suck materials. It operates in a sealed state. There is no transmission mechanism inside, and it is clean and sanitary without dead corners, meeting GMP requirements.
Working principle
V mixer series products are efficient asymmetric mixers, which are suitable for mixing powder or granular materials in chemi- cal, food, medicine, feed, ceramics, metallurgy and other industries. The machine is reasonable in structure, simple in opera- tion, closed in operation, and convenient for feeding and discharging. The cylinder (manual or vacuum feeding) is made of stainless steel, which is easy to clean. It is one of the basic equipment of the enterprise.
