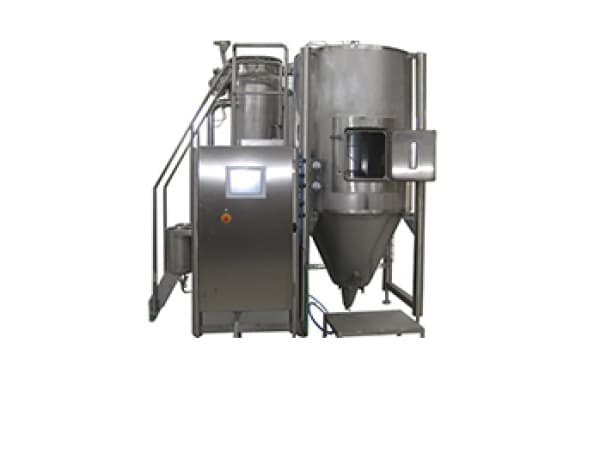

The tower body of ZLPG series Chinese medicine extract spray dryer is equipped with cold air jacket. The tower body is equipped with automatic rapping device. The tower body and pipeline are equipped with quick-opening cleaning holes and blowdown holes. It can be equipped with automatic control thermostatic feeding tank. The part in contact with the material is made of stainless steel. (or made of all stainless steel) materials are collected by two-stage cyclone dust collector, or primary cyclone dust collector and wet dust collector. Automatic control and continuous device for inlet air temperature. It can be equipped with a scavenging device.
The machine is fully enclosed, and all parts are made of stainless steel. It is equipped with a three-stage purification device, and the filtered air reaches the requirements of 100000. The cylinder and the top are equipped with a cold wall device to keep the wall temperature below 80 ℃ . The drying tower is equipped with an air brush tower cleaning device. The traditional Chinese medicine extract powder dried by the machine will not appear coking and deterioration, greatly increasing the powder collection rate (more than 95%), and will not produce drug mixing and wall sticking.
Specification
| Model | ZLPG-25 | ZLPG-50 | ZLPG-80 | ZLPG-100 | ZLPG-150 | ZLPG-200 | ZLPG-300 | |
| Water evaporation (kg/h) | 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
| Processing capacity of feed liquid (kg/h) | 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-400 | |
| Finished product output (kg/h) | 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 28-42 | 36.8-56.4 | 55-85 | |
| Solid content of wet material (%) | 18-25 | |||||||
| Moisture content of finished product (9%) | 3-5 | |||||||
| Electric power (kw) | 63 | 99 | 132 | 153 | 204 | 246 | 330s | |
| Heating source | Steam+electricity | |||||||
| Product capture mode and efficiency | Two-stage cyclone or first-stage cyclone and first-stage wet dust collector 95% | |||||||
| Automatic control instrument | Indication of hot air temperature and exhaust air temperature, automatic adjustment of temperature controller | |||||||
| Inlet air temperature (℃) | 150-200 | |||||||
| Air outlet temperature (℃) | 80-100 | |||||||
| Overall dimension (mm) | L | 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 |
| W | 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | |
| H | 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11000 | |
Feature
The tower body of ZLPG series Chinese medicine extract spray dryer is equipped with cold air jacket. The tower body is equipped with an automatic rapping device. The tower body and pipeline are equipped with quick opening cleaning holes and blowdown holes. It can be equipped with automatic control thermostatic charging tank. The part in contact with the material is made of stainless steel. (or made of stainless steel) Two stage cyclone dust remover, or one stage cyclone dust remover and wet dust remover are used for material collection. Automatic control and continuous device for inlet air temperature. It can be equipped with air sweeper.
Rationale
After being heated by the heater, the air enters the hot air distributor at the top of the drying tower through the blower. After passing the hot air distributor, the hot air enters the drying tower evenly and moves in a spiral shape. At the same time, the feed pump sends the feed liquid to the centrifugal spray at the top of the drying tower, and the feed liquid is sprayed into tiny mist droplets. The surface area of the feed liquid contacting with the hot air is greatly increased, the water evaporates rapidly, and the product is dried in a very short time. The dry product is separated from the wet air by the cyclone separator. The dry air is sent to the small cyclone separator through the aggregate spiral chamber at the bottom of the cyclone separator for separation, and is collected in the material collecting cylinder. The tail gas is discharged by the induced draft fan.
The hot air system, purging system and air conveying system of the dryer are equipped with primary, medium and sub high efficiency filters. All the air entering the drying system is filtered. All parts in contact with materials are made of stainless steel, meeting GMP requirements.
