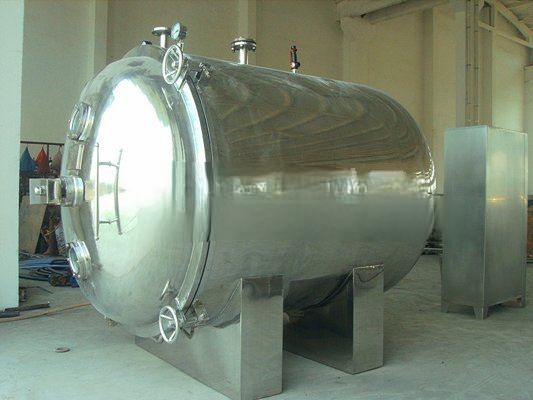

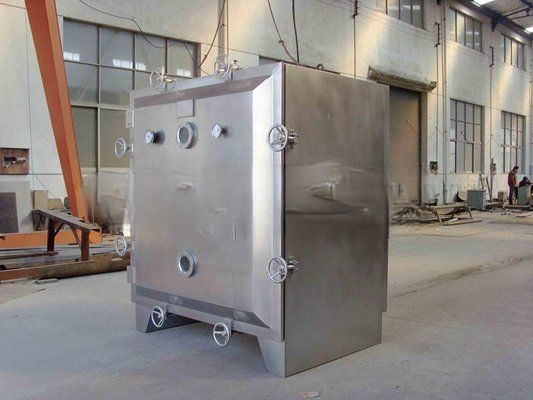

FZG/YZG Square, Round Static Vacuum Dryer

Working principle
The so-called vacuum drying is to heat and dry the dry material under vacuum conditions. If the vacuum pump is used for dehumidification, the drying speed will be accelerated.
Note: If a condenser is used. The solvent in the material can be recovered through the condenser. If the solvent is water, the condenser is not needed, saving energy investment.
Performance characteristics
◎The boiling point of the material solution is lowered under vacuum. The heat transfer driving force of the evaporator is increased, so the heat transfer area of ​​the evaporator can be saved for a certain amount of heat transfer.
◎The heat source of evaporation operation can be low-pressure steam or waste heat steam.
◎The evaporator has less heat loss.
◎Sterilization treatment can be carried out before drying, and no impurity is polluted during the drying process, which meets the requirements of GMP.
◎It is a static vacuum dryer, so the shape of the dried material will not be damaged.
Suitable for materials
It is suitable for low temperature drying of heat-sensitive materials that are easy to decompose, polymerize and deteriorate at high temperatures; it is widely used in pharmaceutical, chemical, food, electronics and other industries.
