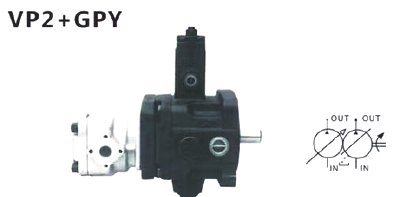

This pump is composed of a low pressure variable vane pump and a high pressure small flow gear pump.
The double variable pump is driven by the same motor, which reduces the assembly space.
The same brake or different brakes, high pressure and low pressure with different pressures can be provided.
The assembly is easy, and the motor and pump can be directly combined with the motor.
Specification
| Model | Highest use | Displacement | Flow rate at no load/min | Pressure adjustment range MPa | Piping size | Weight (kg) | |||
| Pressure MPa | (m/rev) | 1500rpm | 1800rpm | Import | Highest | Fange type | Foot type | ||
| vP2-30+GPY | High pressure: 21 Low pressure: 7 | 16.7+SL | 25+GPY | 30+GPY | A1:0.8-2.0 A2:1.5-3.5 A3:3.0-7.0 | 800 | 1800 | 9.5 | 12.5 |
| vP2-30+GPY | 22.2+SL | 33.3+GPY | 40+GPY | ||||||

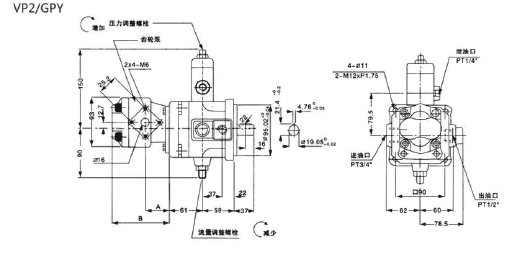

Diagram
