Product Features:
The best LED automatic selection function and simple setting can meet various color mark detection needs.
The detection distance is 8-16mm, and one of three (RGB) LEDs (single color) is automatically selected.
The detection mode realizes 500us high-speed response, and uses LEDs of three colors (RGB) at the same time. The color of the color Mark can be determined with high accuracy through the ratio of reflected light.
Effectively detects films with patterns and patterns around color marks, etc.
The detection distance is 3 times that of similar color mark sensors and the detection hysteresis is adjustable, which can eliminate the influence of jitter of the detected object.
Specification

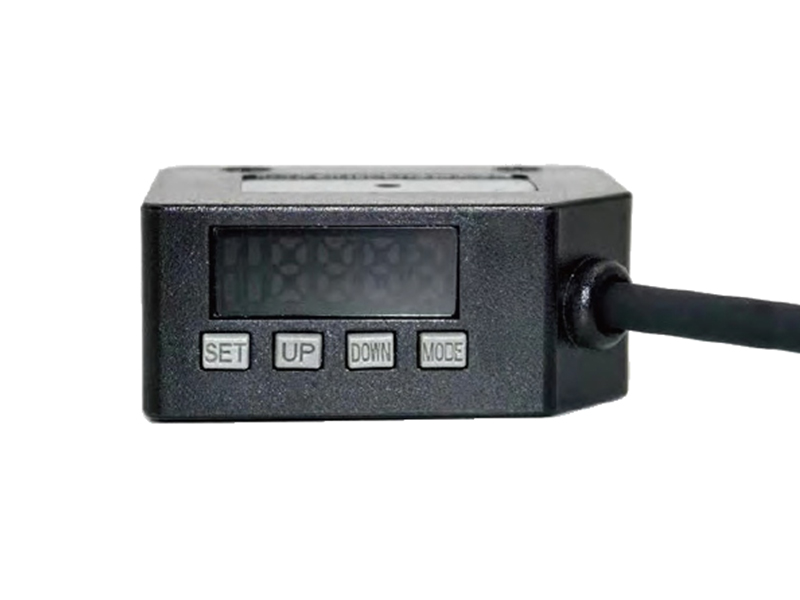

Model | THE-602N | THE-602P |
Output | NPN | PNP |
Type | Wire lead type | |
Output Port | 1 output port | |
Light Source | Tri-color RGB LED | |
Response Time | C and CI mode: 0.6ms, MARK: 0.4ms | |
Output Status | LIGHT-ON/DARK-ON (light/dark switching) | |
Display Instructions | Single-digit display operation indicator light: set value (4-digit red LED light), current value (4-digit red LED light), and displays the current value when powered on. Current value range: 0-4089 | |
Detection Method | brightness | |
Delay Function | Turn off delay counter/turn on delay counter/turn off single delay counter/turn on single delay counter. Counter duration selectable: 0.1ms-9,999ms. | |
Control Output | Open collector 24V, maximum 100mA. | |
Power Supply | Between 12-24VDC±10%, floating ratio (PP): maximum 10%. | |
Working Environment Brightness | Incandescent lamp: maximum 20,000lux, daylight: maximum 30,000lux | |
Loss Power | Standard mode: 0.5W max (24VDC) | |
Vibration Resistance | 10 to 55Hz, dual amplitude: 1.5mm, X.YZ axis 2 hours each | |
Impact Resistance | XY and Z directions are 500m/s2, 3 times each | |
Operating Temperature | -10 to 55℃, no icing | |
Shell Material | Polycarbonate cool | |
Relative Humidity | 35-85%, no icing | |
Weight | About 53g (including 2m cable) | |
