PRODUCT PARAMETERS：
Equipped with two independent outputs, normally open and normally closed.

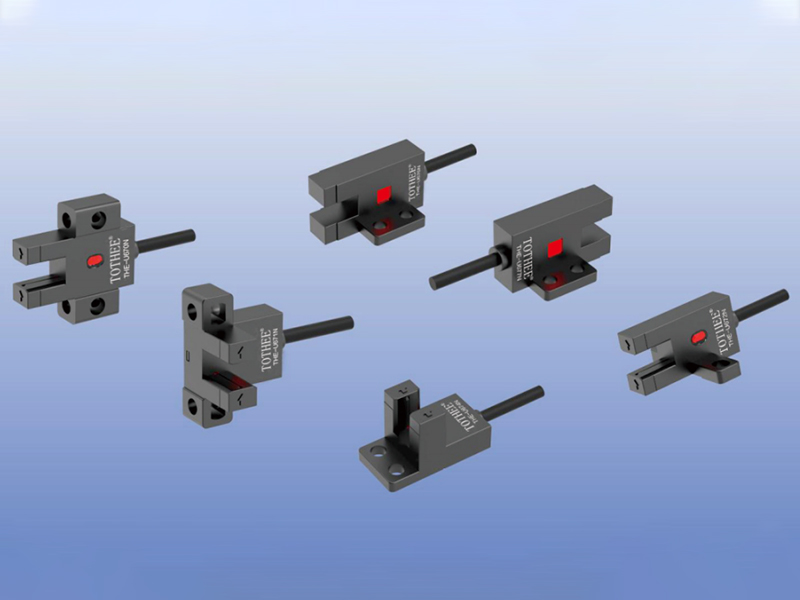

A wide range of options are available, with 2 installation shapes available.
Response frequency 2KHz high-speed response.
Good stability and strong anti-interference.

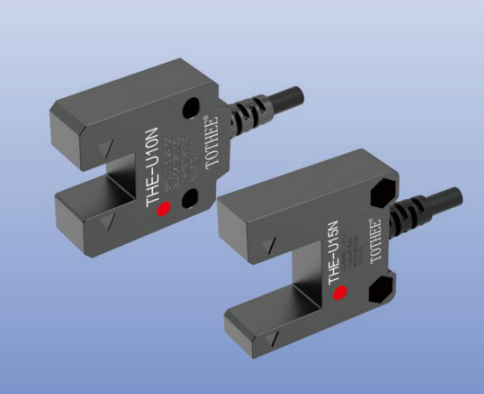

| Model | Npn Output | Theu10N | The-U15N |
| Detection Distance | 10mm Groove Width | 15mm Groove Width | |
| Detect Objects | 1.2x0.8mm Opaque Object | ||
| Light Source | GaAs Infrared Light Emitting Diode (940nm) | ||
| Response Frequency | 2kHz | ||
| Voltage | DC12-24V | ||
| Repeat Accuracy | 0.03mm Or Less | ||
| Control Output | Switching Capacity | 3-200mA | |
| Residual Voltage | 3V Or Less (Load Current 100ma, Wire Length 2m) | ||
| Indicator | Action Indicator Light (Red) | ||
| Action Form | Equipped With Two Independent Outputs (On When Light Is Blocked, On When Light Enters) | ||
| Protection Circuit | Surge Protection Circuit, Reverse Polarity Protection | ||
| Ambient Temperature | During Operation: -25-+70℃ During Storage: -40-85℃ (No Freezing, No Condensation) | ||
| Environment Humidity | During Operation And Storage: 35-95%Rh Each (No Condensation) | ||
| The Influence Of Environmental Illumination | The Light Receiving Surface Illumination Is Less Than 1000Lx | ||
| Effect Of Temperature | Temperature Range -25-70℃, When Every 20℃ Change, The Detection Distance Changes Within ±10% | ||
| Effect Of Voltage | When The Rated Power Supply Voltage Fluctuates Within ±15%, The Detection Distance Changes Within ±1% | ||
| Insulation Resistance | 50MΩ Or More (DC500 Megohmmeter) Between The Charging Part And The Casing | ||
| Withstand Voltage | AC1000V50/60Hz1 mim Charging Part And Case | ||
| Vibration (Durability) | 10~55Hz, 1.5mm Up And Down Amplitude, 2h Each In X, Y And Z Directions | ||
| Impact (Durability) | 500m/S², 10 Times In Each Direction Of X, Y And Z | ||
| Connection Method | Wire Lead Type (Standard Wire Length 2m) | ||
| Shell Material | PC | ||
