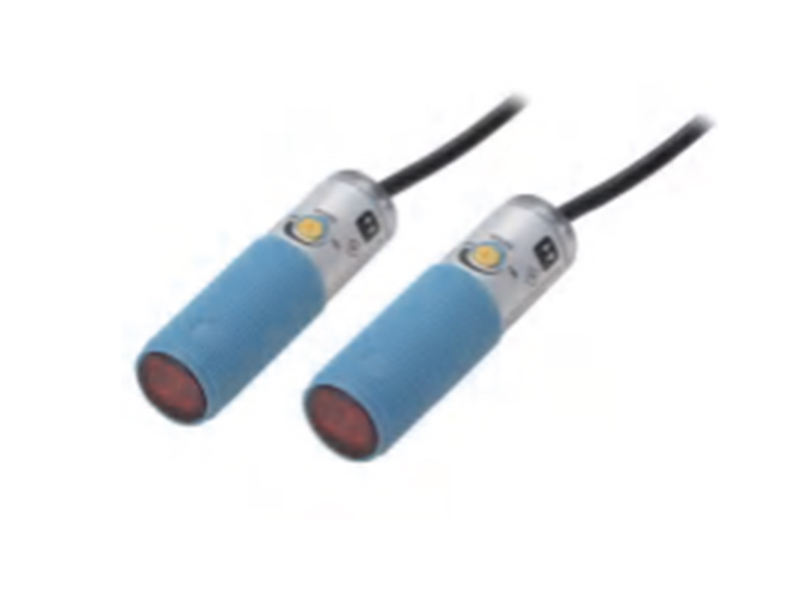

Npn Output

THY-T10NA

THY-R3NA

THY-D40NA

Pnp Output

THY-T10PA

THY-R3PA

THY-D40PA

Detection Distance

10M

3M

0.4M

Standard Detection Object

Opaque objects: 15mm min

Opaque objects: 75mm min

100×100mm white drawing paper

Response Difference

 -- --

 -- --

Less than 20% of the detection distance

Light Source (Wavelength)

Infrared LED

Infrared LED

Infrared LED

Voltage

DC10～30V±10% (p-p) 10% or less

Current Consumption

DC:45mA Max

DC:25mA Max

Control Output

Load power supply voltage DC26.4V or less, load power supply current 100mA or less (residual voltage 1V or less)

Protect The Circuit

Reverse power supply/output short circuit

Response Time

Action/reply takes less than 1.0ms each

Sensitivity Adjustment

Continuously variable regulator

Ambient Lighting

Incandescent lamp below 3000Ix/sunlight below 10000Ix

Ambient Temperature

During operation: -25~+55℃ (with no icing)

Storage: -30~+70℃ (with no icing)

Environment Humidity

During action: 45%~85% (with no icing)RH

During storage: 35%~95% (with no icing)RH

Insulation Resistance

20M or more (500VDC)

Dielectric Strength

AC1000V and above at 50/60Hz, between current carrying parts and housing for 1 minute

Vibration Resistance (Durability)

10~55Hz, 1.5mm double width, up to 1h in X, Y and Z directions

Impact Resistance (Durability)

500m/S² double width, 3 times each in X, Y and Z directions

Protective Structure

IEC60529 IP67

Connection Method

Wire lead-out type (standard wire length: 2m)/M12 connector

Indicator Light

Red LED: Lights up when the detection output is ON

Weight Lead Type

Plastic shell: 110g Plastic shell: 60g

Packing

Carton

  Material

Shell

PC (polycarbonate)

Lens

PMMA

Appendix

ABS

Appendix

Nuts;Instructions
