HMI touch screen operation platform, easy to understand.
Easy to operate, quick to use, multilingual interface.
High-precision weighing sensor is used to ensure the stability of measurement.
The patented design screw (patent number:CN210392604U) solves the extrusion of the traditional screw during the feeding process, protects the integrity of the masterbatch, and greatly improves the feeding accuracy.
Design cabinet protection, improve the stability and aesthetics of the equipment, shield the interference from the external symmetrical platform, and provide a guarantee for the long-term stable use of the equipment.
Independent research and development of high-precision dynamic instruments, dual PID adjustment, advanced control algorithm, the highest resolution can reach 1/1000000.
Servo motor is used, with high control precision, small size, fast response, low noise, and stable operation at low speed.
Specification
Flow Range (kg / h) | 0.3-60 |
Number of Control Stations | 1-36 |
Division Value (kg) | 0.0001 |
Rated Voltage / Power | 220V / 1KW |
Accuracy Class | III |
Air Source Requirements (mpa) | 0.4-0.6 |
Maximum Capacity (kg) | 50 |
Dimensions (mm) | 800x740x1720 |
Feature

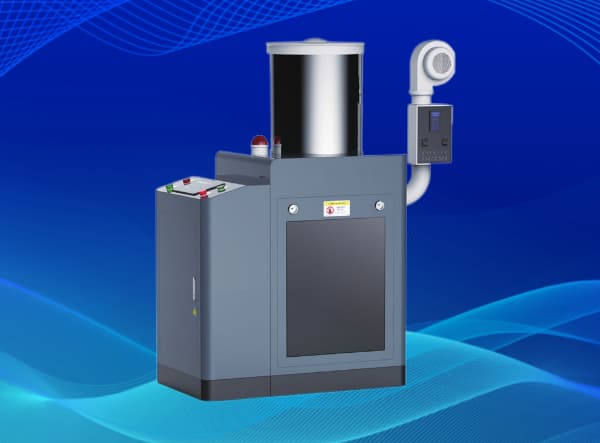

1.The loss-in-weight masterbatch feeding machine system adopts weighing method for feeding measurement, which solves the problems of poor feeding accuracy, cumbersome calibration and difficult real-time monitoring encountered by traditional masterbatch machines.
2.The system controls the extrusion volume of the material by controlling the speed of the servo motor, and collects the weight of the material in real time to calculate the current flow. By comparing the current flow with the preset target flow, it adopts the international advanced double PID algorithm to automatically Adjusting the speed of the servo motor greatly improves the feeding accuracy.
3.The system monitors data throughout the working process, automatically generates production data reports and alarm information records and other information, and can also be connected to the office area LAN through industrial Ethernet to realize remote real-time monitoring and production management.
