It is mainly used in weight control and weight transmission in the factory automation production process, especially suitable for high-precision fields such as down filling machines, cotton filling machines, liquid injection machines, and tablet presses.
Strong anti-interference ability, suitable for industrial environment.
Support multi-channel switch input/output configurable.
Independent RS232 and 485 serial communication interfaces.
24-bit AD (with analog and digital filtering).
It supports multiple analog output modes and can be configured.
1 channel sensor interface, supports up to 8 350 ohm sensors.
Specification
| Working Power Supply | DC24v |
| AD Type | 24 bit AD conversion (with analog and digital filtering) |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 16000000 |
| Input Range | 0~15mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS232, COM2RS485 |
| Weight Display | 6-bit LED display |
| Key Functions | 5 function keys, tare, clear, set |
| Operating Temperature | -10~45℃ |
| Power | Approx. 6w |
| Sample Rate | Maximum 400 times / second |
| Nonlinear | 0.002%FS |
| Display index | 500,000 |
| Zero Range | 0~7.5mV |
| Driving Capacity | Up to eight 350Q sensors can be driven |
| Analog Output | 4~20mA、0~20mA、0~5V、0~10V |
| Indicator light | Zero position, dynamic, gross and net weight, communication |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

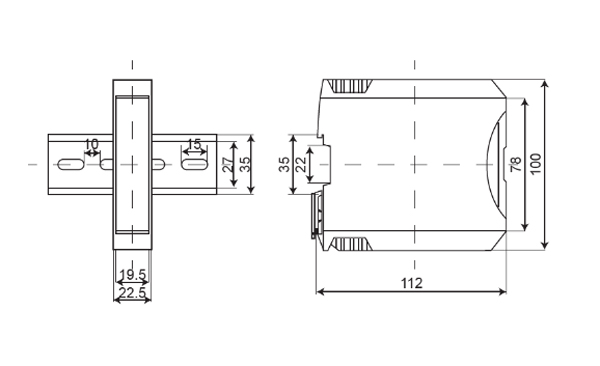

Diagram
