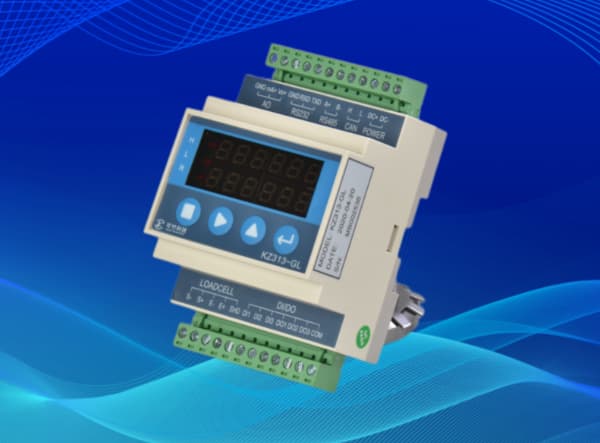

Mainly used for weighing/force measuring display, peak detection/display hold, fixed value DO output and analog AO/digital transmission.
Strong anti-interference ability, suitable for industrial environment.
Standard RS232/RS485 interface, optional CAN communication.
Support multi-channel switching value, input/output can be configured.
Support a variety of analog quantities, the output mode can be configured.
Using a unique anti-vibration filtering algorithm, the highest sampling frequency is 3200Hz, and the response speed is fast.
1 sensor interface, supporting up to 8 weighing sensors of 350Ω.
Specification
| Working Power Supply | DC24v(18-36V) |
| AD Type | 24 bit AD conversion (with analog and digital filtering) |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 16000000 |
| Input Range | 0~12.5mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS232, COM2RS485 |
| Weight Display | Dual line LED display |
| Key Functions | 4 function keys |
| Operating Temperature | -10~50℃ |
| Power | Approx. 3w |
| Sample Rate | Maximum 3200 times / second |
| Nonlinear | 0.002%FS |
| Display index | 100,000 |
| Zero Range | -10~30mV |
| Driving Capacity | Up to eight 350Q sensors can be driven |
| Analog Output | 4~20mA、0~5V、0~10V |
| Indicator light | Zero position, dynamic, gross and net weight, communication, zero tracking |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

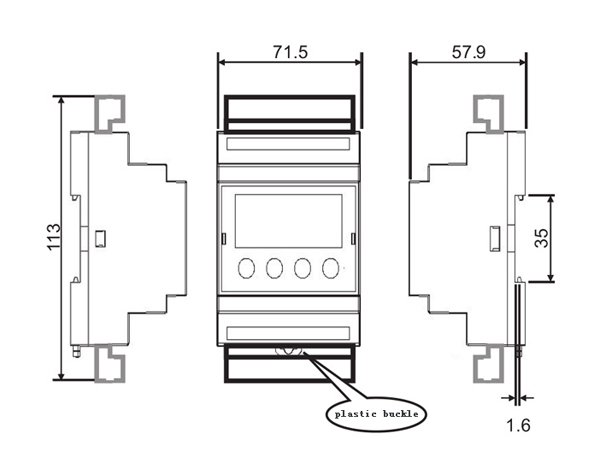

Diagram
