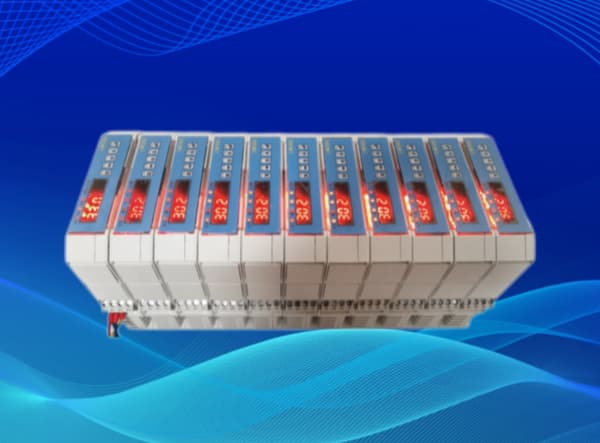

A weighing controller developed for dynamic real-time batching process, with multiple given flow modes.
Unique anti-vibration filter algorithm, precise weighing control.
Double PID regulation.
Automatic flow quantitative timing control.
Multiple switch input/output, configurable.
Independent RS232 and RS485 serial communication interfaces.
It can be used with the touch screen to make flow curves and output reports.
Specification
| Working Power Supply | DC24v(18-36V) |
| Weight | Approx. 0.2kg |
| Communication Interface | COM1:RS232,COM2:RS485 |
| Weight Display | ABS housing with display and operation panel |
| Weighing Process | AD channel / 2 chennels |
| Power | ≤5w |
| Sample Rate | Maximum 400 times / second |
| Temperature Coefficient | ≦5ppm/C° |
| Installation Method | Guide rail installation |

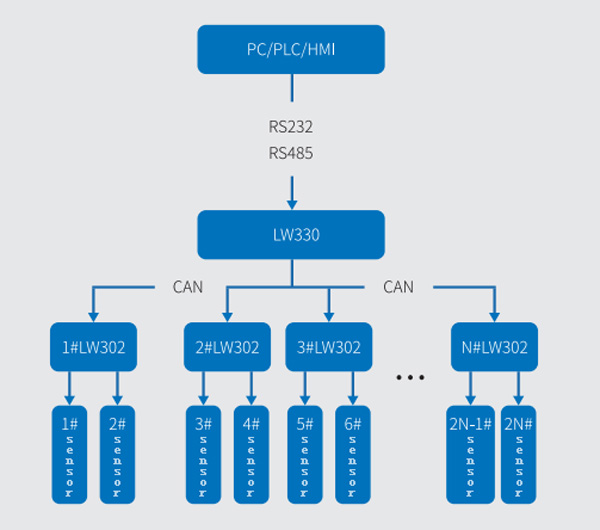

Diagram
Qualification
