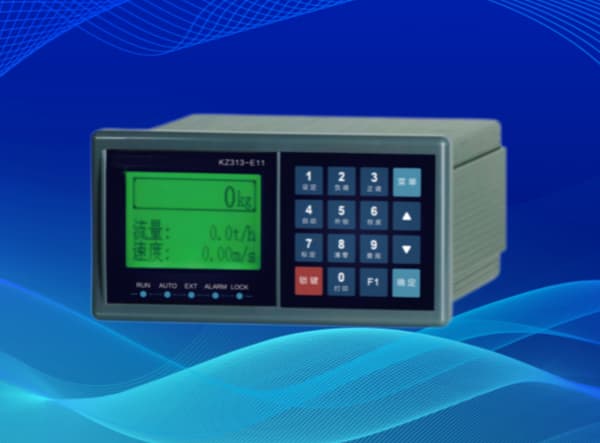

It is mainly used in metering belt scales and belt quantitative feeders.
The multi-task working mode does not affect the control process such as measurement when performing operations such as parameter setting.
Functions such as automatic encryption, key encryption, digital setting, and digital adjustment.
Unique anti-vibration filter algorithm, precise weighing control.
Speed calibration and belt length calibration.
Tare calibration and automatic tare (automatic zero tracking).
DI/DO/AO/COM (communication port) functions can be defined.
Can inquire and print the shift/day/month output within one year.
Specification
| Working Power Supply | DC220v±15%, 50/60Hz |
| AD Type | 24 bit AD conversion (with analog and digital filtering) |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 1000000 |
| Input Range | 0~25mV |
| Excitation Voltage | 10V |

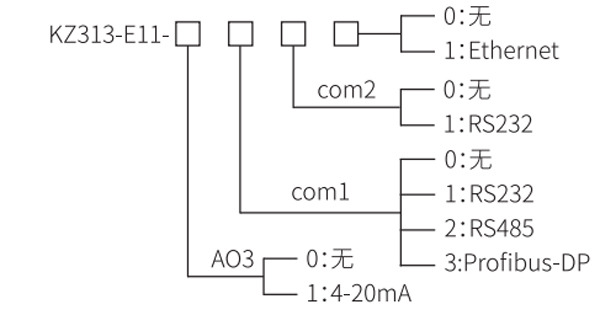

| Communication Interface | COM1RS485, COM2RS232 |
| Weight Display | LCD liquid crystal Chinese / English display |
| Key Functions | 16 function keys |
| Operating Temperature | -20~40℃ |
| Power | Max 15w |
| Sample Rate | Maximum 400 times / second |
| Nonlinear | 0.002%FS |
| Display index | 100,000 |
| Zero Range | 0-25mV |
| Driving Capacity | Up to eight 350Q sensors can be driven |
| Analog Output | Up to 3 channels |
| Temperature Coefficient | ≦5ppm/C° |

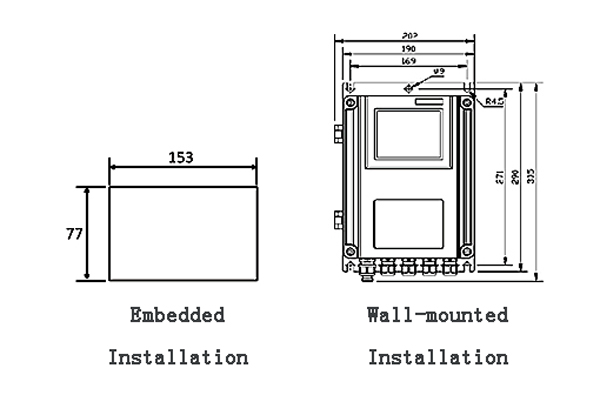

| Installation Method | Recessed panel/wall mount |
| Relative Humidity | 10~90%, non condensing |
Diagram
