It is mainly used in weight control and weight transmission in harsh industrial sites and factory automation production processes.
Dual AD channels.
Multi-stage dynamic digital filter to meet high-speed dynamic weighing occasions.
Display division: 200,000 divisions.
2 sensor interfaces, each supporting 4 350 ohm sensors.
Independent RS232 and RS485 dual serial communication interfaces.
400Hz / 200Hz / 100Hz sampling rate optional.
Specification
| Working Power Supply | DC24v(18-36V) |
| AD Type | 24 bit AD conversion (with analog and digital filtering), dual AD channel |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 16000000 |
| Input Range | -10~30mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS232, COM2RS485 |
| Weight Display | 6 bit LED display |
| Key Functions | 5 function keys |
| Operating Temperature | -10~40℃ |
| Power | Less than 6w |
| Sample Rate | Maximum 400 times / second |
| Nonlinear | 0.002%FS |
| Display index | 200,000 |
| Zero Range | -10~30mV |
| Driving Capacity | Up to eight 350Q sensors can be driven |
| Analog Output | 4~20mA、0~5V、0~10V |
| Temperature Coefficient | ≦5ppm/C° |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

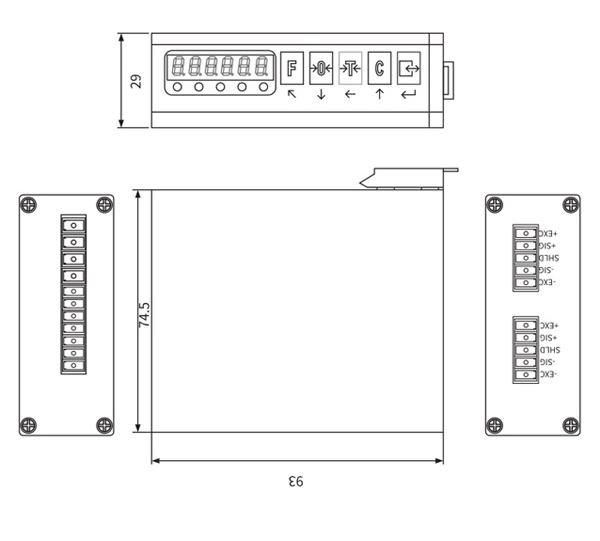

Diagram
