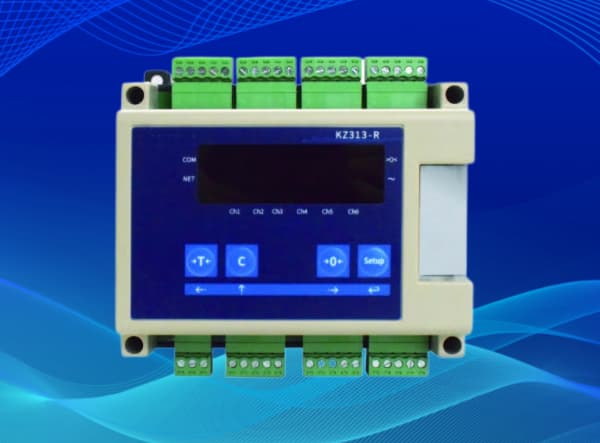

It is mainly used in weight control and weight transmission in the factory automation production process, especially suitable for multi-channel high-precision weighing fields such as down filling machines, liquid injection machines, and small material batching stations.

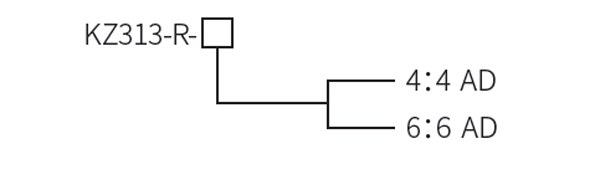

4 or 6 AD channels.
Multi-stage dynamic digital filter to meet high-speed dynamic weighing occasions.
Display division: 500,000 divisions.
4 or 6 independent sensor interfaces are optional.
Independent RS232 and RS485 dual serial communication interfaces.
400Hz / 200Hz / 100Hz sampling rate is optional.
Specification
| Working Power Supply | DC24v(18-36V) |
| AD Type | 24 bit AD conversion (with analog and digital filtering), 4 / 6 AD channel optional |
| Zero Drift | <0.02uV/℃ |
| Internal Resolution | 1 / 16000000 |
| Input Range | 0~15mV |
| Excitation Voltage | 5V |
| Communication Interface | COM1RS232, COM2RS485 |
| Weight Display | 6 bit LED display |
| Key Functions | 4 function keys |
| Power | Less than 5w |
| Sample Rate | Maximum 400 times / second |
| Nonlinear | 0.002%FS |
| Display index | 500,000 |
| Using Temperature | -10-50℃ |
| Temperature Coefficient | ≦5ppm/C° |
| Installation Method | Guide rail installation |
| Relative Humidity | 10~90%, non condensing |

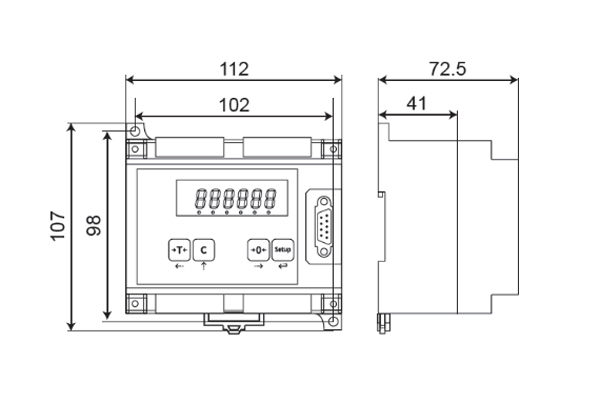

Diagram
